EC Centrifugal Fans Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: Pa66 With Fiber Class Filed Ul-94v0
3. Pedestal: Die Cast Aluminum
4. Motor Type: ESM (Energy Saving Motor)
5. Connection: Wire & Terminal
Blk(+)/(-), Blu(PWM, Custom Service)
6. Protection: Locked (Custom Services)
7.Insulation Class: E
8. Compressive Strength: 1500v
9. Storage Temperature: -20°- 70°
10. Working Temperature: -10°- 60°
| MODEL NO. | VOLTAGE (V) | FREQUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW(CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-ECC133L | 220 | 50/60 | 0.12 | 15 | 2600 | 93.50 | 14.30 | 55.8 |
| RA-ECC133M | 220 | 50/60 | 0.26 | 30 | 3600 | 133.00 | 28.40 | 64.40 |
| RA-ECC133H | 220 | 50/60 | 0.39 | 56 | 4600 | 186.16 |

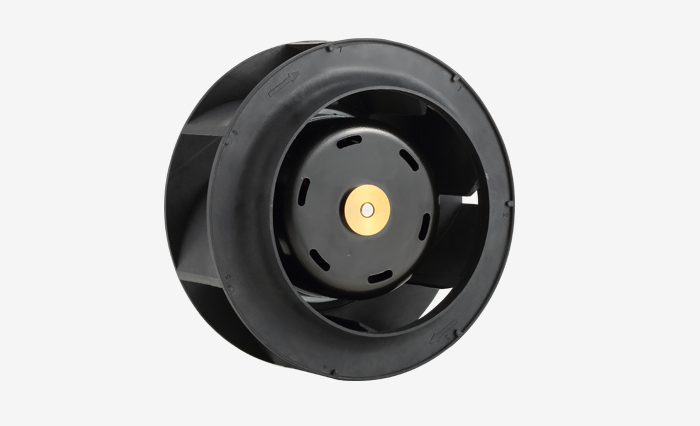

Ruiapple is backward curved ø 133 mm EC centrifugal fans manufacturer in China.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
