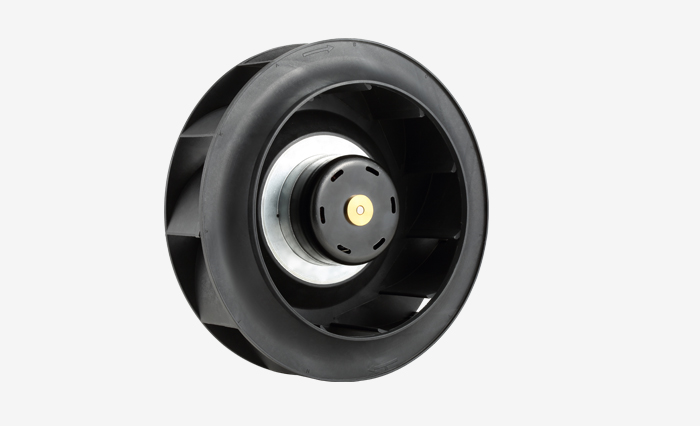

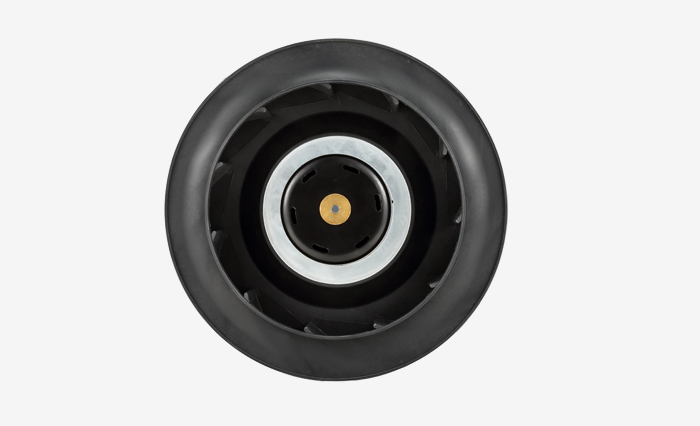

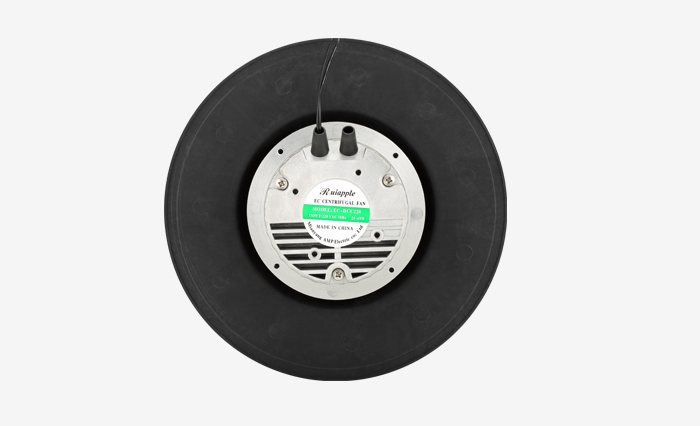

48V 24V DC Brushless Centrifugal Fan Features:
1.Bearing System: Ball Bearing & Sleeve Bearing
2.Impeller: PA66 With Fiber Class Filed Ul-94v0
3.Mounting Base: Die Cast Aluminum
4.Motor Type: DC Brushless
5.Connection: Wire & Terminal
Red (+) / Blk(-) / Blu(PWM)
6.Out Put Signal: Fg—Yell Rd—Wite

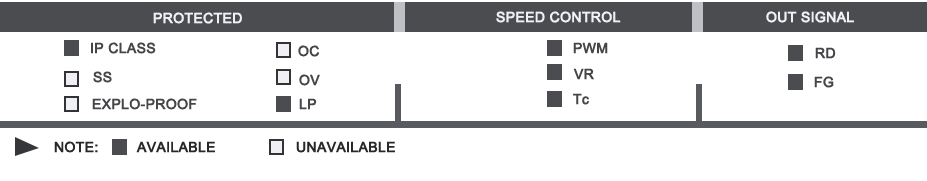

7.Protection: Polar & Locked
8.IP Class: Max IP68 )
9.Insulation Class: B
10.Compressive Strength: 500v
11.Storage Temperature: -20°--- 70°
12.Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE （mm-H2O) | NOISE （dBA） |
| RA-DCC220L | 24 48 | 1.80 0.80 | 43.20 38.40 | 1900 | 372.50 | 23.00 | 59 |
| RA-DCC220M | 24 48 | 2.80 1.30 | 67.20 62.40 | 2400 | 467.50 | 38.00 | 65 |
| RA-DCC220H | 24 48 | 5.40 2.60 | 129.60 124.80 | 3000 | 568.00 | 59.50 | 72 |
Description:
We Ruiapple are committed to the development of high quality, superior performance, green energy-saving dc fan products, mainly focus on high performance & low power consumption of DC brushless centrifugal fan. Related voltage: 12V, 24V, 48V. Made in China.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
