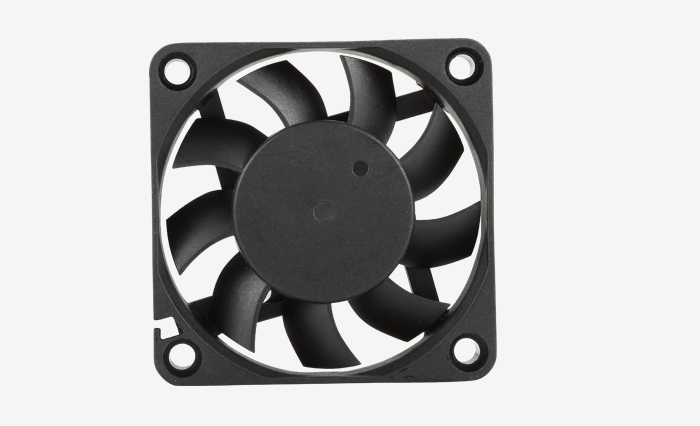

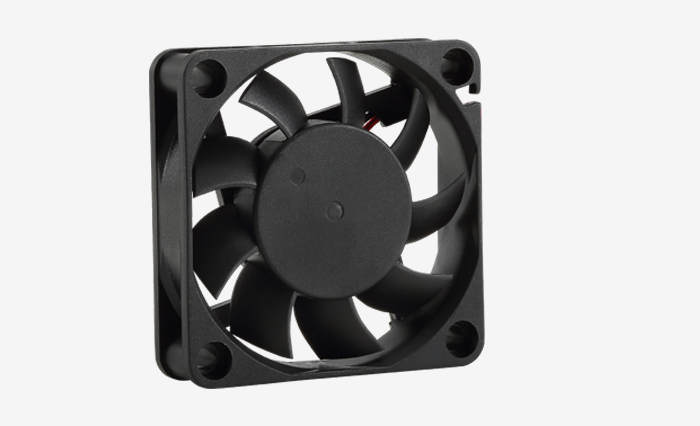

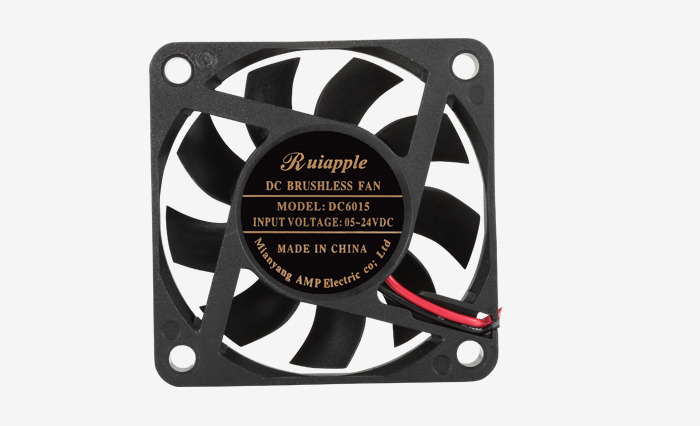

DC Axial Fans (60x60x15mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODELNO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAXAIRFLOW (CFM) | MAXSq. （mm-H2O) | NOISE （DBA） |
| RA-DC6015L | 12 24 | 0.12 0.07 | 1.44 0.68 | 4000 | 14.87 | 3.33 | 23.00 |
| RA-DC6015M | 12 24 | 0.15 0.08 | 1.80 1.92 | 4500 | 16.90 | 4.90 | 34.00 |
| RA-DC6015H | 12 24 | 0.18 0.10 | 2.16 2.40 | 5000 | 18.93 | 5.09 | 39.50 |
Description:
Looking for a high performance 60mm 12V or 24V DC brushless cooling fan supplier? Ruiapple manufactures a wide variety dc brushless cooling fan sizes for all of your cooling needs. Our fan blades are shaped with a great degree of accuracy. By balancing the blades more efficiently, they are able to extend the life of the bearing and reduce the overall noise of the fan. This 60mm fan dimension 60x60x15.
Related Product: 60x60x20 fan, axial fan 60x60x25
View More Products: DC Axial Fans
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement.
