AC Axial Fan Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
Specification:
| MODEL NO. | VOLTAGE (V) | FREUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC25489L22 | 220/240 | 50/60 | 0.15/0.14 | 33/31 | 1500/1650 | 460/550 | 8.89/11.43 | 48/51 |
| RA-AC25489L11 | 110/120 | 50/60 | 0.32/0.30 | 35/30 | 1500/1650 | 460/550 | 8.89/11.43 | 48/51 |
Description:

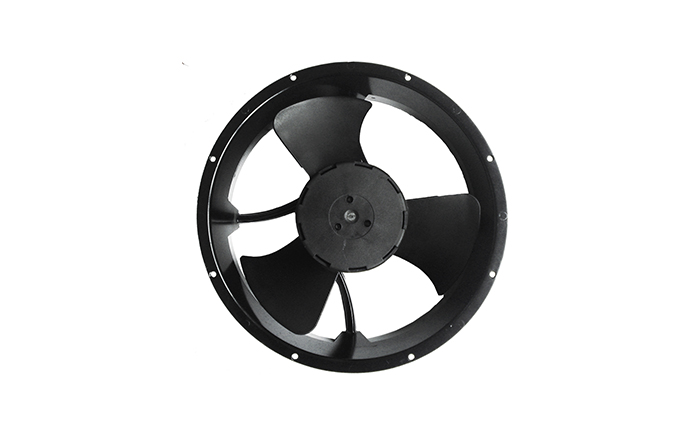

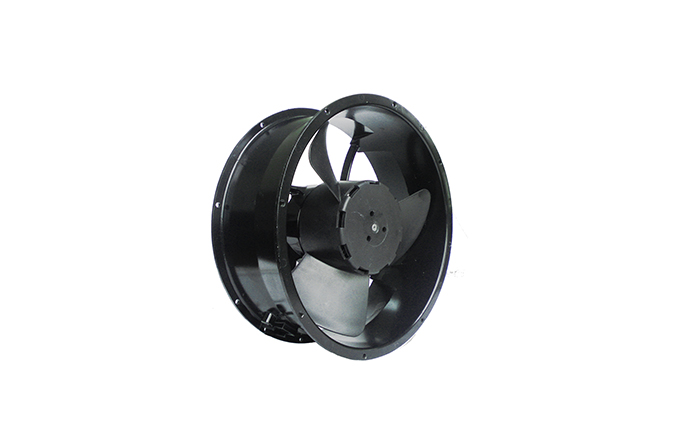

This 110VAC ø254mm axial cooling fan could be supplied by 120V, 220V, 240V. Common used in electronics, cabinets and industrials. From Ruiapple.
Note: We can also adjust all the parameters according to your requirements.
