AC Axial Fan Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
| MODEL NO. | VOLTAGE (V) | FREUENCY(HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW(CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC12025L22 | 220/240 | 50/60 | 0.09/0.08 | 13/12 | 1700/1900 | 57/60 | 4.06/4.57 | 34/37 |
| RA-AC12025L11 | 110/120 | 50/60 | 0.13/0.11 | 13/12 | 1700/1900 | 57/60 | 4.06/4.57 | 34/37 |
| RA-AC12025H22 | 220/240 | 50/60 | 0.12/0.11 | 18/16 | 2000/2350 | 64/80 | 5.08/5.84 | 43/44 |
| RA-AC12025H11 | 110//120 | 50/60 | 0.19/0.18 | 18/16 | 2000/2350 | 64/80 | 5.08/5.84 | 43/44 |
Description:

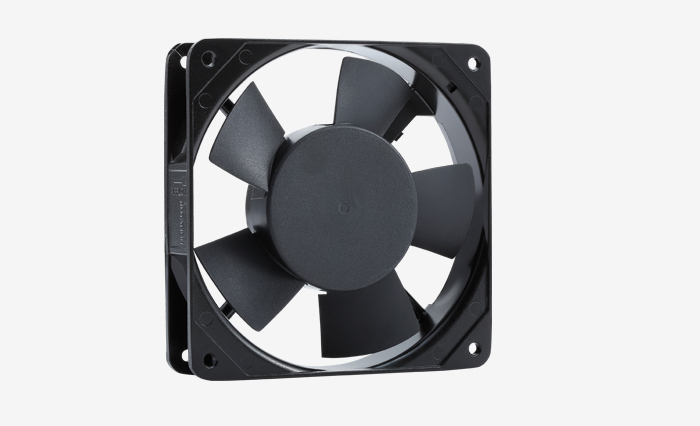

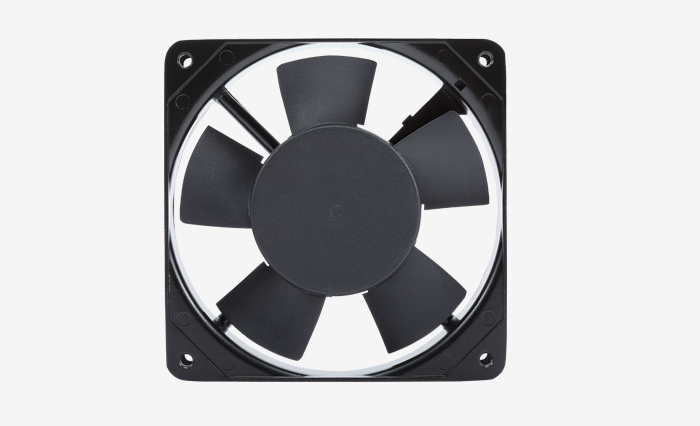

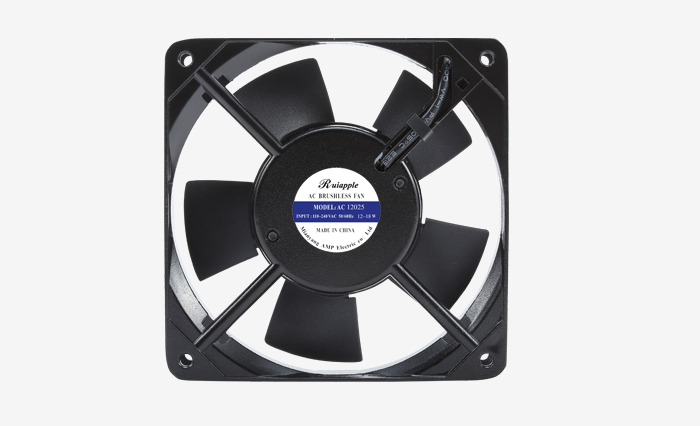

This 120mm main ac axial cooling fan is used in industrial equipment, such as ovens and washing machines. Related voltage, 110V, 120V, 220V, 230V, 240V. High speed and low speed can be customized. From Ruiapple, a Chinese manufacturer of ac axial cooling fan.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
