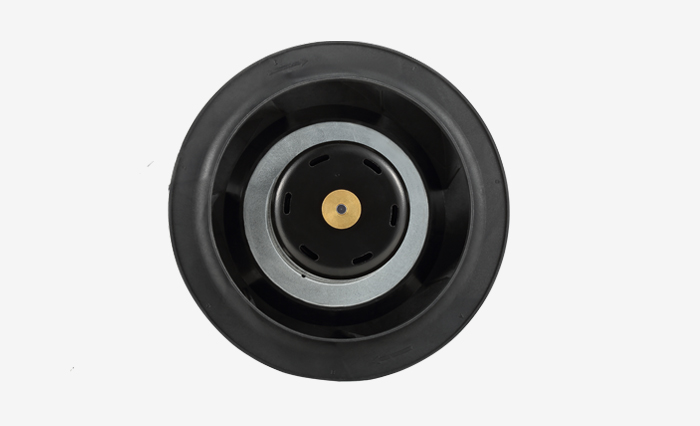

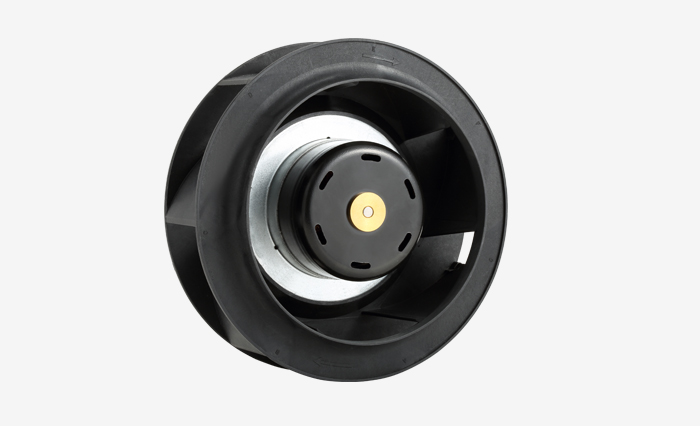

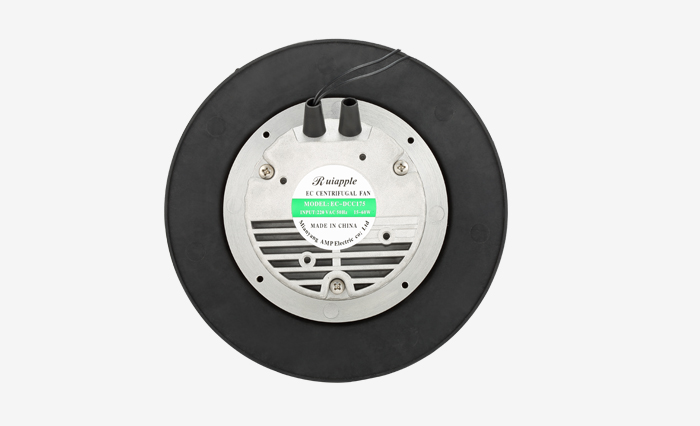

48V DC Centrifugal Fan Features:
1.Bearing System: Ball Bearing & Sleeve Bearing
2.Impeller: PA66 With Fiber Class Filed Ul-94v0
3.Mounting Base: Die Cast Aluminum
4.Motor Type: DC Brushless
5.Connection: Wire & Terminal

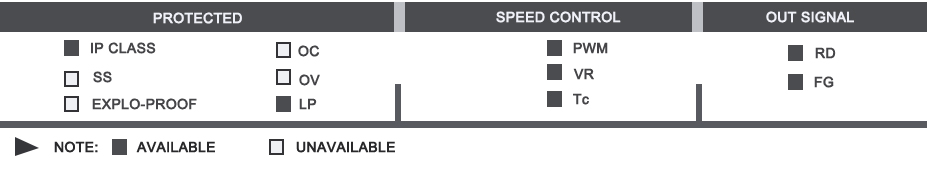

Red (+) / Blk(-) / Blu(PWM)
6.Out Put Signal: Fg—Yell Rd—Wite
7.Protection: Polar & Locked
8.IP Class: Max IP68 )
9.Insulation Class: B
10.Compressive Strength: 500v
11.Storage Temperature: -20°--- 70°
12.Working Temperature: -10°--- 60°

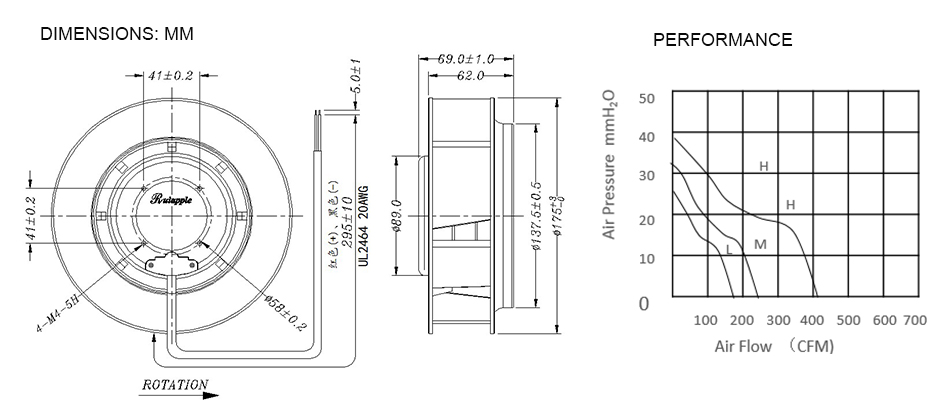

| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE （mm-H2O) | NOISE （dBA） |
| RA-DCC175L | 24 48 | 1.15 0.55 | 27.60 26.40 | 2000 | 197.06 | 25.00 | 48 |
| RA-DCC175M | 24 48 | 1.35 0.68 | 32.40 32.64 | 2500 | 247.06 | 31.00 | 59 |
| RA-DCC175H | 24 48 | 1.60 0.80 | 38.40 38.40 | 3000 | 412.60 | 38.00 | 70 |
Description:
Rated Voltage: 24V, 48V. DC backward curved centrifugal fans from Ruiapple are available in various sizes and power stages for an extremely wide variety of applications – by request. This dc backward curved centrifugal fan could save more space. Made in China.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
