DC Axial Fans

RA-DC12030

DC Axial Fans (120x120x30mm) Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: PBT With Fiber Class Filed Ul-94V0

3. Motor Type: High Performance DC Brushless

4. Connection: Wire & Terminal

                        Red (+) / Black(-) / Blue (PWM)

5. Out Put Signal: FG—Yellow   RD—White

6. Insulation Class: B

7. Compressive Strength: 500v

8. Storage Temperature: -20°---  70°

9. Working Temperature: -10°---  60°

Inquire Now
Product Details

RA-DC12030

RA-DC12030

RA-DC12030

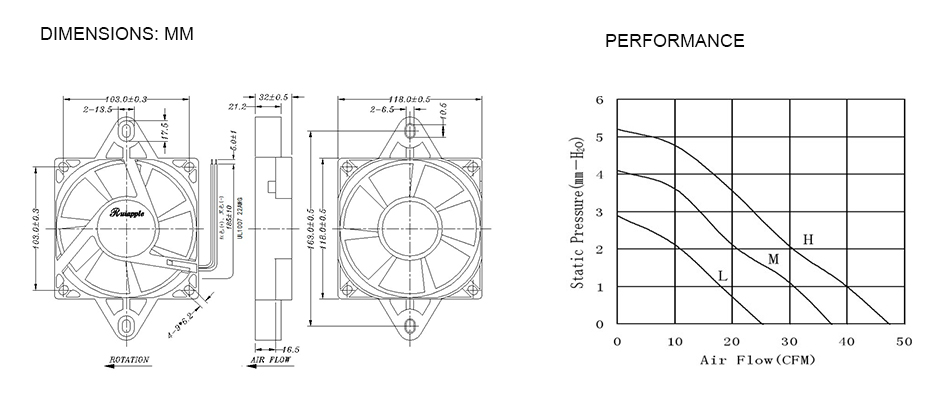

MODEL NO.

VOLTAGE

(V)

CURRENT
(A)
POWER
(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAX Sq.
(mm-H2O)
NOISE
(DBA)
RA-DC12030L12
24
0.40
22
4.80
5.28
200025.002.9018
RA-DC12030M12
24
0.50
0.26
6.00
6.24
250036.004.1022
RA-DC12030H12
24
0.60
0.32
7.20
7.68
300047.005.2035


Description:

Designed for high efficiency and low power consumption, the low noise 12V or 24V 120mm 120x120 DC cooling fans produce less vibration than similar fans. In addition to rotor blades, this fan has stationary blades to regulate high density air flow. This fan comes with rigid die-cast aluminum frame. This standard DC axial fan has highly reliable ball bearing system that is ideal for telecom and other industry applications.


Related Product:

120x120x25mm Fan

120x120x32 Fan

Cooling Fan 120x120x38

View More Products: DC Axial Fans


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
