EC Axial Compact Fan Design Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: ESM
5. Connection: Wire & Terminal

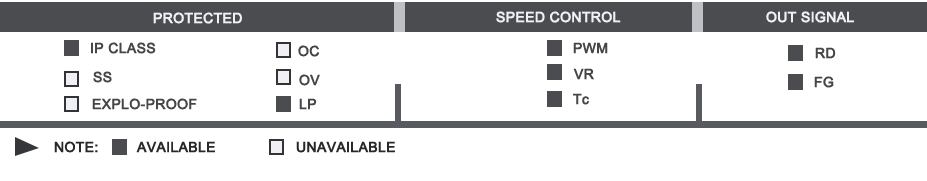

Red (+) / Black(-) / Blu(PWM)
6. Out Put Signal: FG—Yell RD—Wite
7. Protection: Polar & Locked
8. Insulation Class: E
9. Compressive Strength: 1500v
10. Storage Temperature: -20°--- 70°
11. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE (V) | FREQUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-EC17251AH | 110-240 | 50/60 | 0.17 | 21 | 3600 | 260 | 18.9 | 60.8 |
Description:

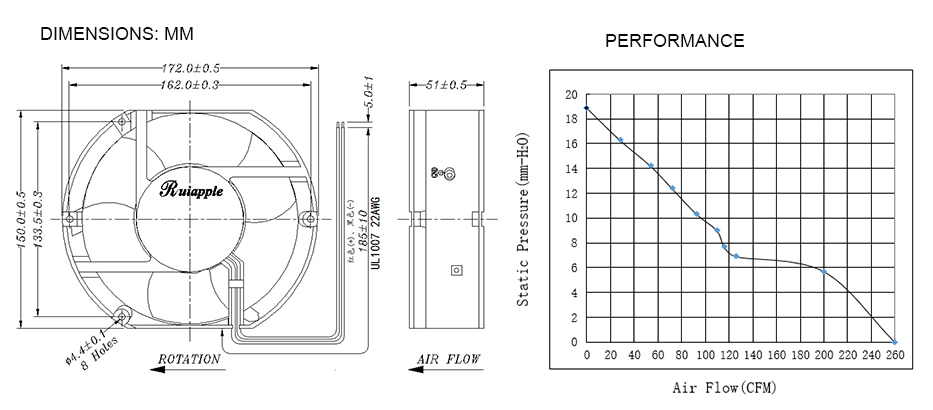

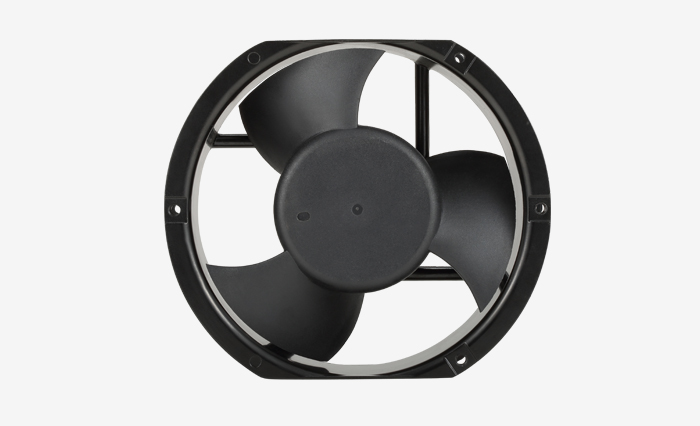

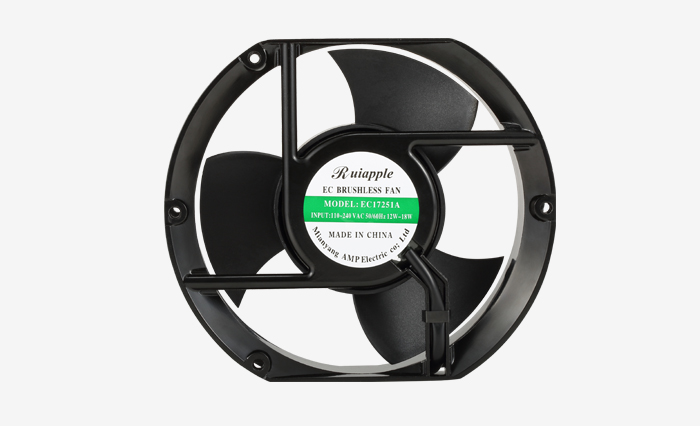

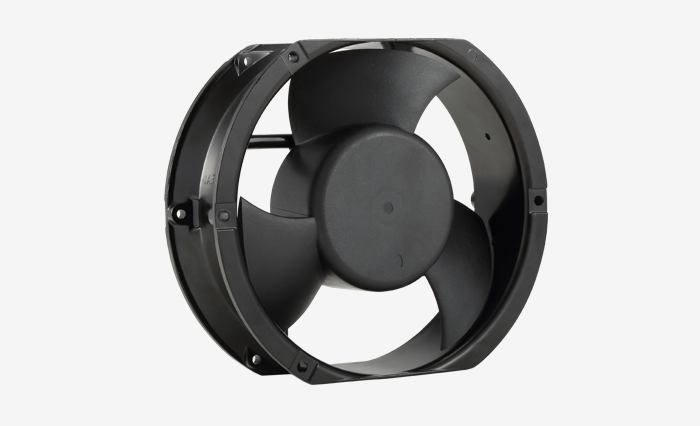

EC Axial Compact Fan for High-efficiency Technology from Ruiapple. New type axial cooling fan. Size: 172x150x51mm.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
