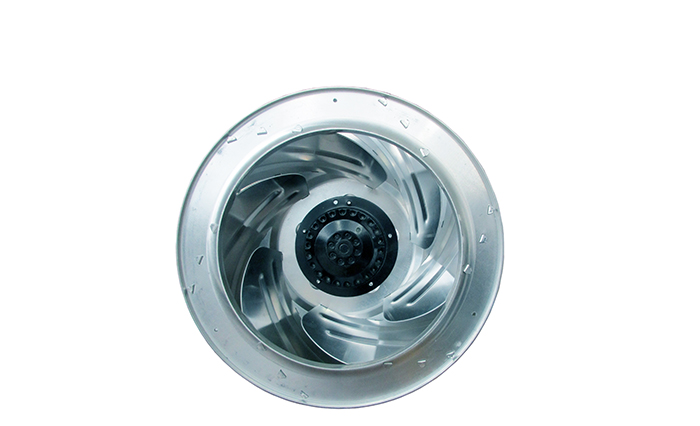

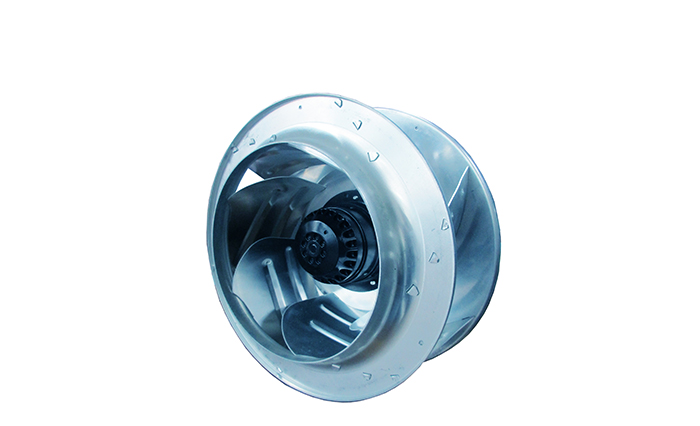

AC Centrifugal Fan Design Features:
1. Bearing System: Ball Bearing
2. Impeller: Aluminum
3. Housing: Die Casting Aluminum
4. Motor Type: Ac Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20°--- 70°
8. Working Temperature: -10°--- 60°
Specifications:
MODEL NO. | VOLTAGE (VAC) | FREQUENCY (Hz) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE (mm-H2O) | NOISE (dBA） |
RA-ACC315A | 230 | 60 | 0.56 | 125 | 1650 | 1148 | 18.90 | 66 |
50 | 0.46 | 95 | 1410 | 995 | 13.00 | 62 | ||
RA-ACC315B | 230 | 60 | 0.71 | 160 | 1370 | 1400 | 18.90 | 60 |
50 | 0.54 | 120 | 1530 | 1254 | 13.20 | 62 |
Description:
AC centrifugal fan with backward curved blades are used primarily for intake suction and do not require a scroll housing. They have high hydraulic efficiency. Centrifugal fans are used in many industrial processes because they are able to produce large increases in air pressure. They are often used in grain drying and and greenhouse ventilation. These are also common in air pollution control as well as heating, ventilation and air conditioning (HVAC) systems.
Related Products:
Note: We can also adjust all the parameters according to your requirements.
