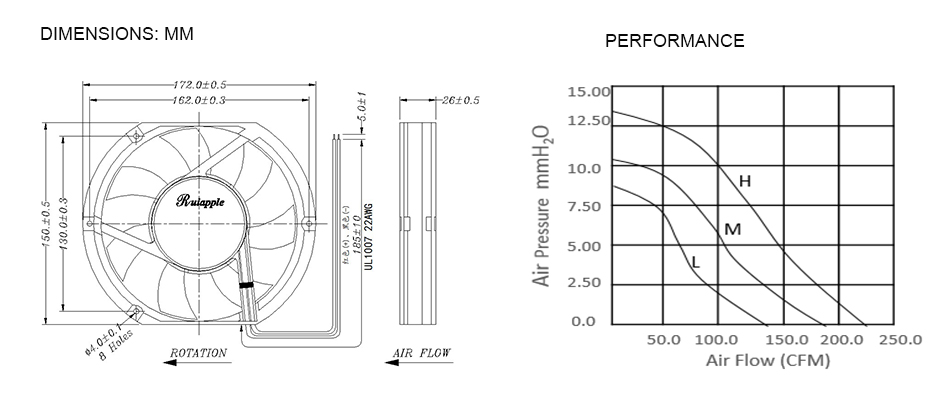

DC Axial Fans (172x150x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC17225L | 12 24 48 | 0.36 0.20 0.12 | 4.32 4.80 5.76 | 2000 | 142.00 | 4.57 | 45.40 |
| RA-DC17225M | 12 24 48 | 0.64 0.34 0.18 | 7.68 8.16 8.64 | 2500 | 168.50 | 7.33 | 51.50 |
| RA-DC17225H | 12 24 48 | 1.10 0.48 0.30 | 13.20 11.52 14.44 | 3000 | 199.25 | 10.34 | 55.40 |
Description:
This DC axial fan is available with multiple features for improved fan operation and performance. 12 volt, 24 volt or 48 volt. High Performance, low noise and high efficiency. Detail dimension 172x150x25mm. Contact us for detail custom service.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
