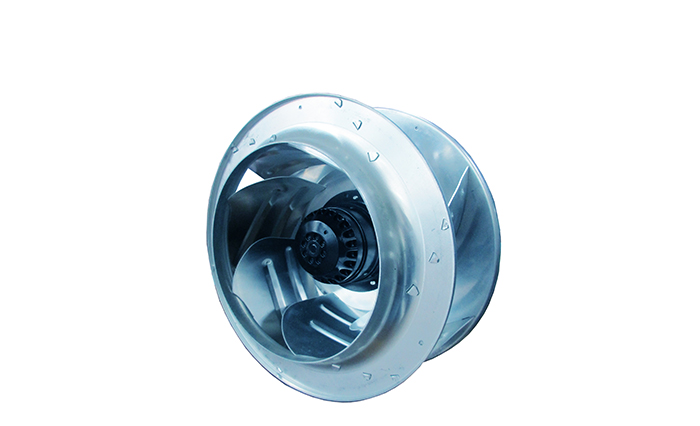

AC Centrifugal Fan Design Features:
1. Bearing System: Ball Bearing
2. Impeller: Aluminum
3. Housing: Die Casting Aluminum
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20°--- 70°
8. Working Temperature: -10°--- 60°

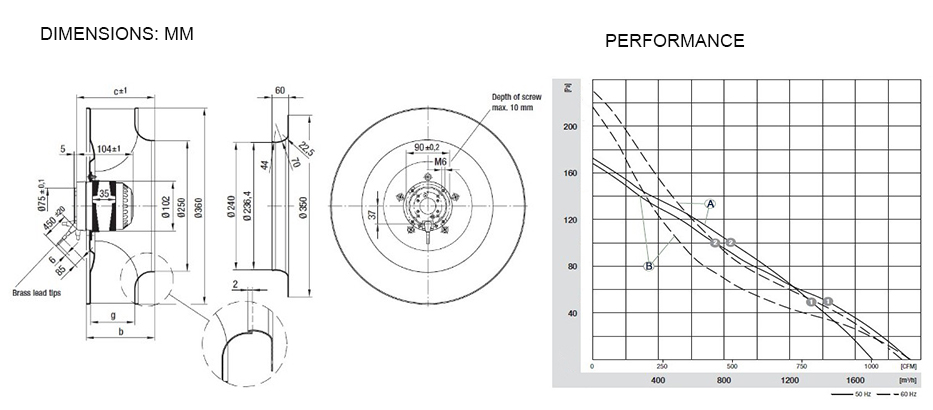

Specifications:
MODEL NO. | VOLTAGE (VAC) | FREQUENCY (Hz) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE (mm-H2O) | NOISE (dBA） |
RA-ACC355A | 230 | 50 | 0.78 | 170 | 1410 | 1392 | 17.50 | 66 |
60 | 1.10 | 250 | 1630 | 1613 | 23.00 | 70 | ||
RA-ACC355B | 230 | 50 | 1.10 | 215 | 1400 | 1613 | 16.90 | 68 |
60 | 1.32 | 300 | 1630 | 1878 | 21.50 | 70 |
Decription:
Ruiapple is ac centrifugal fan with PWM controller manufacturer in China. We not only supply all kinds of cooling fan, fan blower, but also we provide professional thermal control solutions.
Related Products:
Note: We can also adjust all the parameters according to your requirements.
