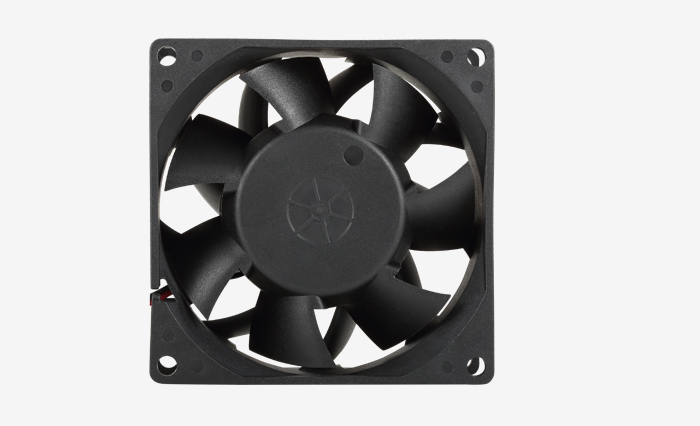

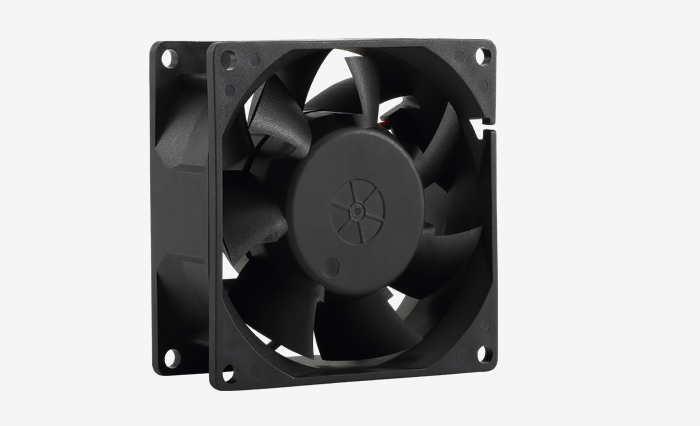

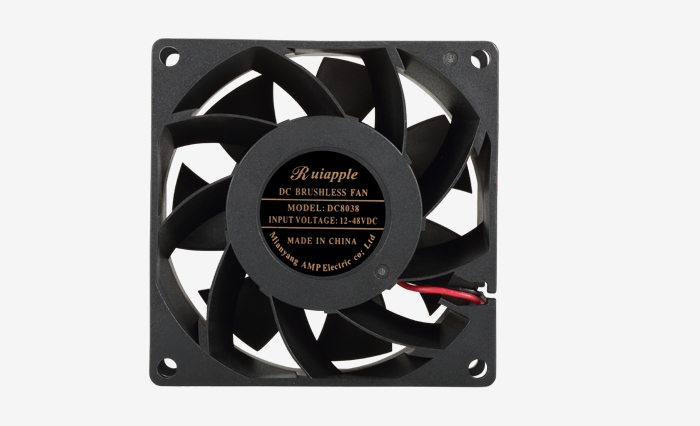

DC Axial Fans (80x80x38mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC8038L | 12 24 48 | 0.35 0.18 0.10 | 4.20 4.32 4.80 | 4500 | 54.80 | 10.59 | 51.30 |
| RA-DC8038M | 12 24 48 | 0.68 0.33 0.18 | 8.16 7.92 8.64 | 5500 | 68.00 | 15.98 | 55.00 |
| RA-DC8038H | 12 24 48 | 1.00 0.48 0.26 | 12.00 11.52 12.48 | 6500 | 80.50 | 21.80 | 60.50 |
| RA-DC8038U | 24 48 | 0.76 1.50 | 18.24 72.00 | 9000 | 118.00 | 43.50 | 68.00 |
Description:
Ruiapple 80x80x38mm DC cooling fan features high speed, high air flow (CFM) & high static pressure, offers the ideal solution for all types of application that requires a system characterized by high reliability, low acoustic noise, high-average expected life (up to 200,000 hours) and high efficiency.
Related Product: 80x80x15mm DC Fan, 80x80x20mm DC Fan, 80x80x25mm DC Fan, 80x80x25mm AC Fan, 80x80x38mm AC Fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
