EC Centrifugal Fans

RA-ECC225

EC Centrifugal Fans Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: Pa66 With Fiber Class Filed Ul-94v0

3. Pedestal: Die Cast Aluminum

4. Motor Type: ESM (Energy Saving Motor)

5. Connection: Wire & Terminal

    Blk(+)/(-), Blu(PWM, Custom Service)

6. Protection: Locked (Custom Services)

7.Insulation Class: E

8. Compressive Strength: 1500v

9. Storage Temperature: -20°- 70°

10. Working Temperature: -10°- 60°


Inquire Now
Product Details

RA-ECC225

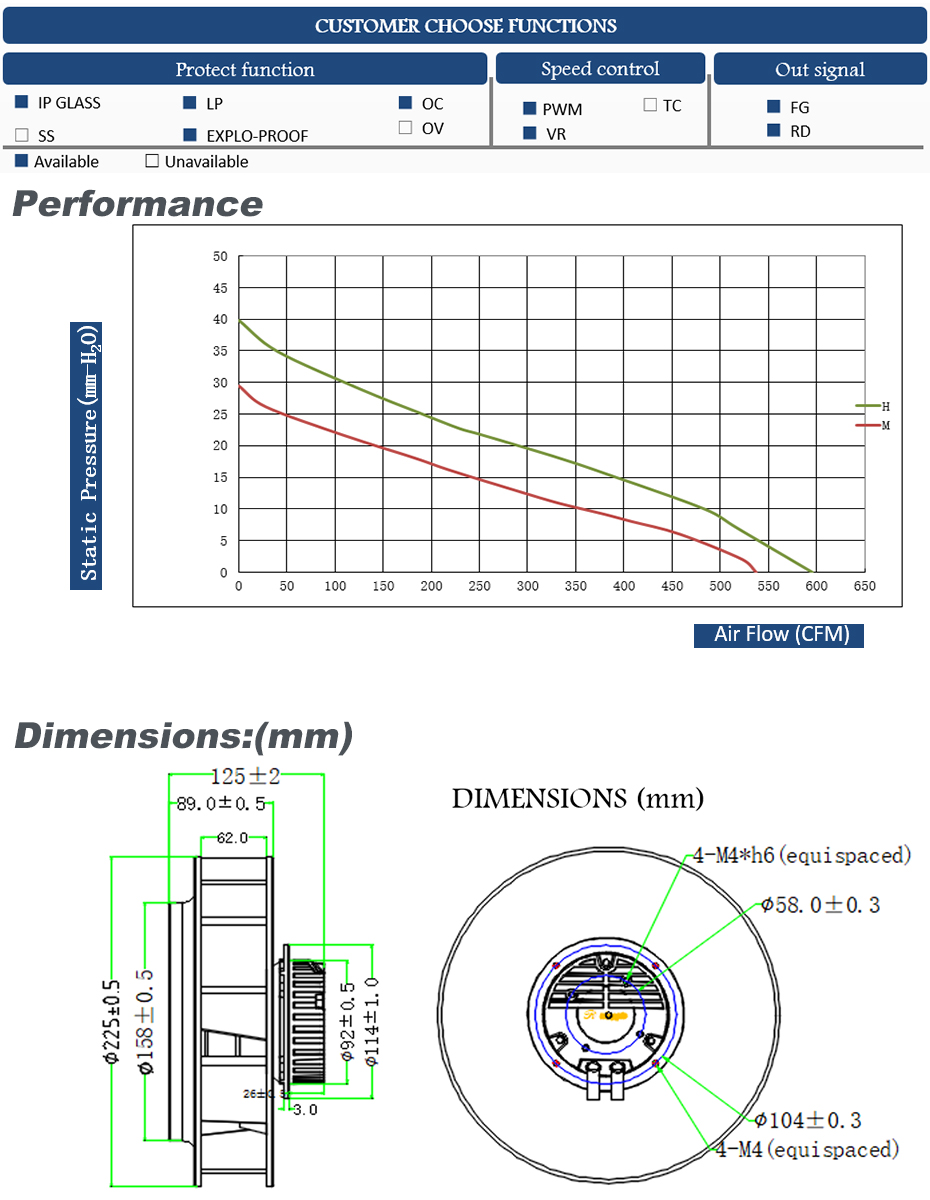

Specification:

MODEL NO.VOLTAGE
(V)

 FREQUENCY

  (HZ)

CURRENT
(A)
POWER
(W)
SPEED
(RPM)

MAX AIR FLOW

(CFM)

MAX Sq.
(mm-H2O)
NOISE
(DBA)
RA-ECC225M220  50/600.40472000537.0029.4066.00
RA-ECC225H22050/600.46682300595.0039.8070.00

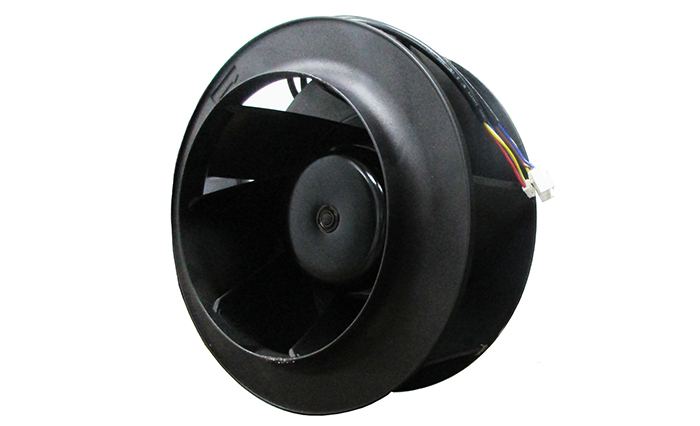

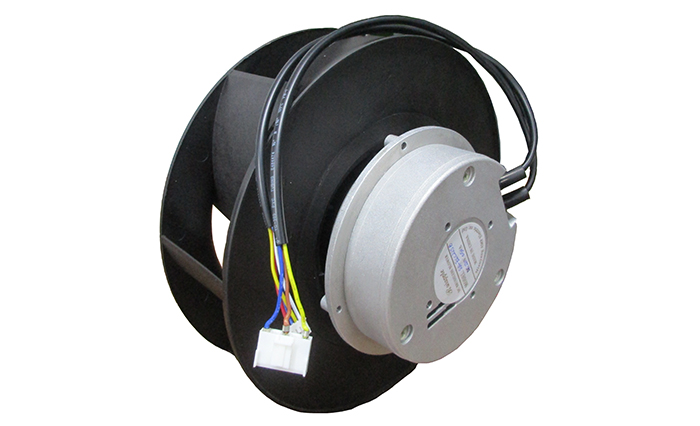

Ruiapple is a reputed backward curved ø 225 mm EC centrifugal fan manufacturer in China.


Note: We can also adjust all the parameters according to your requirements.
