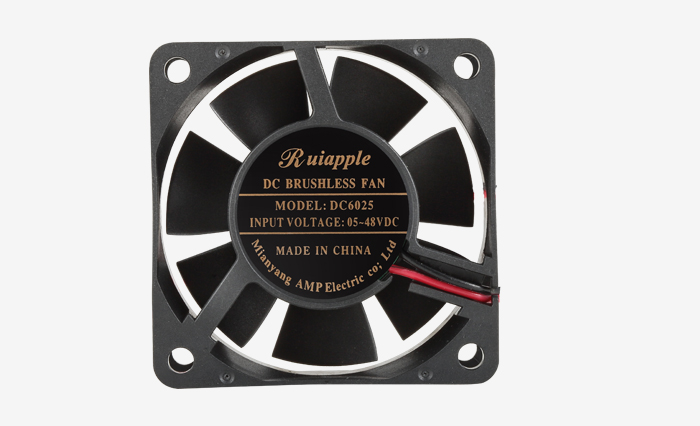

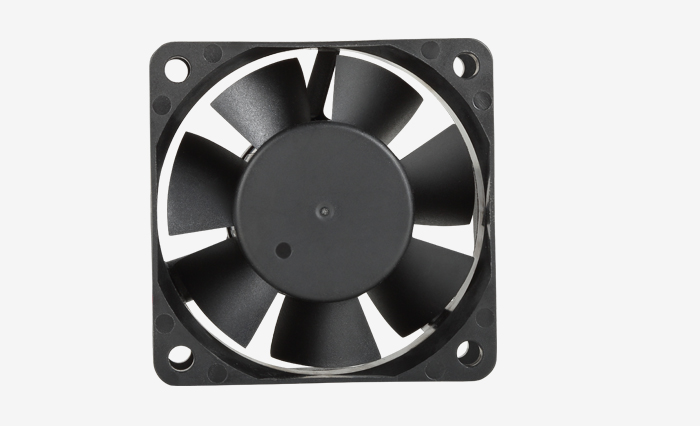

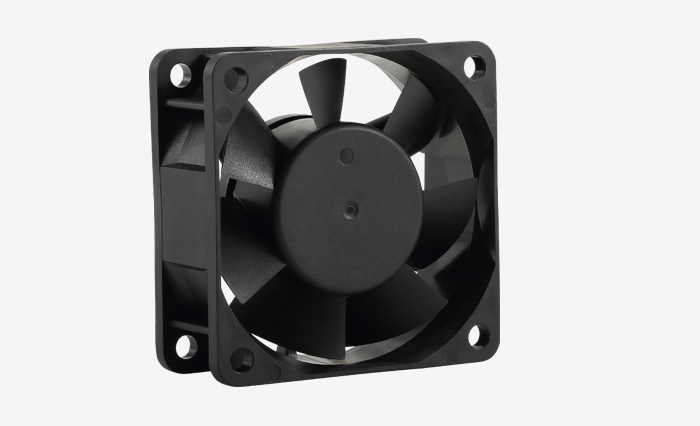

DC Axial Fans (60x60x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC6025L | 12 24 | 0.07 0.09 | 0.84 2.16 | 3000 | 15.10 | 2.68 | 24.6 |
| RA-DC6025M | 12 24 | 0.11 0.07 | 1.32 1.68 | 4000 | 21.30 | 4.80 | 33.0 |
| RA-DC6025H | 12 24 | 0.17 0.10 | 2.04 2.40 | 5000 | 26.50 | 7.56 | 38.5 |
Description:
This 24vdc 60mm dc axial fan provides better cooling efficiency for computer and hard disc. In addition, long-life bearing makes fan's life get longer it could efficiently extend fan's life, and reduce fan replacement frequency. 12V and 24V fan are both supplied. Fan demisions: 60x60x25 mm.
Related Product: 60x60x20 fan, fan 60x60x15
View More Products: DC Axial Fans
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
