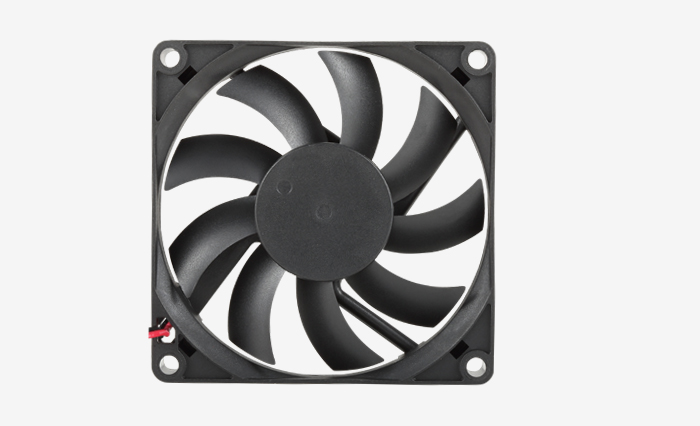

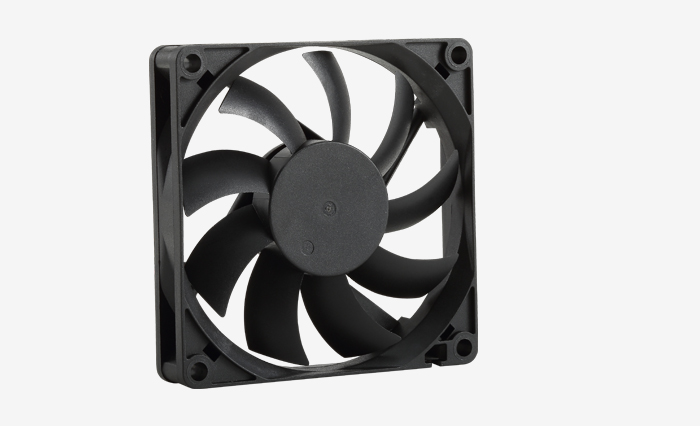

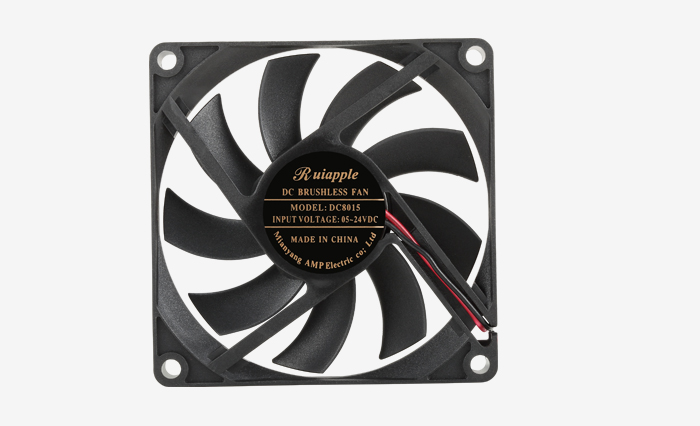

DC Axial Fans (80x80x15mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°

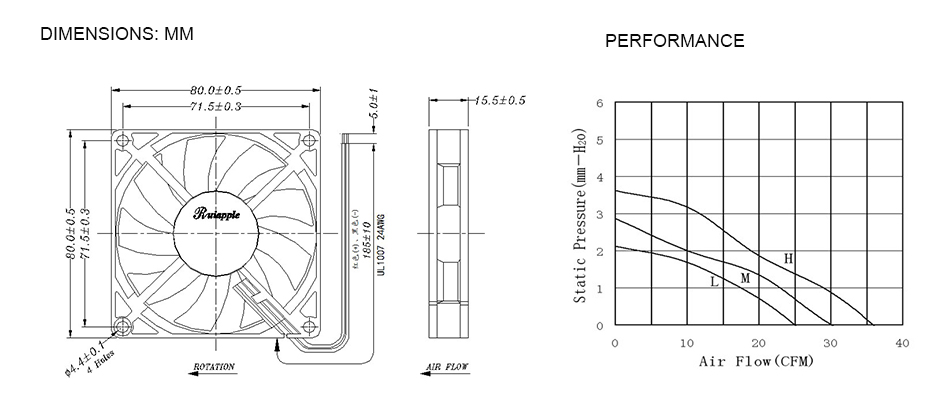

| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC8015L | 12 24 | 0.13 0.08 | 1.56 1.96 | 2000 | 24.00 | 2.10 | 26 |
| RA-DC8015M | 12 24 | 0.20 0.12 | 2.40 | 2500 | 30.20 | 2.80 | 29 |
| RA-DC8015H | 12 24 | 0.26 0.18 | 3.12 4.32 | 3000 | 35.10 | 3.60 | 33 |
Description:
This is a low noise and fairly large 80mm 80x80x15 PWM control case cooling fan for computer. It is mainly used for PC CPU & Server Cooling. Optional voltage 12v, 24v. There are several 80mm cooling fans, click related products link to view more similar dimension fans please.
Related Product: 80x80x20mm DC Fan, 80x80x25mm DC Fan, 80x80x38mm DC Fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
