Design Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Cast Aluminum
4. Motor Type: Dc Brushless
5. Connection: Wire & Terminal

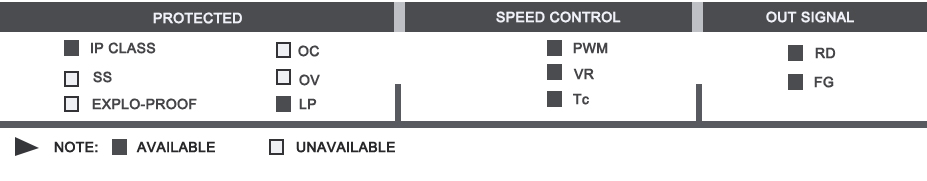

Red (+) / Blk(-) / Blu(PWM)
6. Out Put Signal: Fg—Yell Rd—Wite
7. Protection: Polar & Locked
8. IP Class: Max IP68 )
9. Insulation Class: B
10. Compressive Strength: 500v
11. Storage Temperature: -20°--- 70°
12. Working Temperature: -10°--- 60°

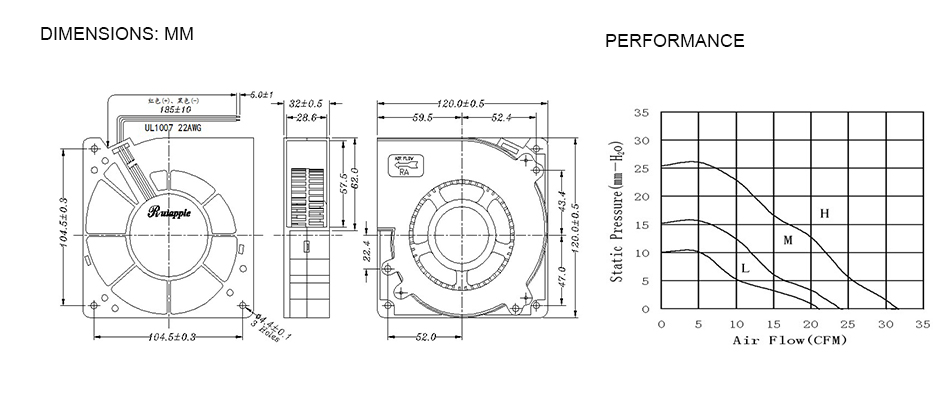

| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE （mm-H2O) | NOISE （dBA） |
| RA-DB12032L | 12 24 | 0.40 0.21 | 4.80 5.04 | 2000 | 24.90 | 15.93 | 43 |
| RA-DB12032M | 12 24 | 0.68 0.37 | 8.16 8.88 | 2500 | 28.50 | 22.74 | 48 |
| RA-DB12032H | 12 24 | 1.00 0.66 | 12.00 15.84 | 3000 | 36.40 | 35.87 | 52.5 |
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
