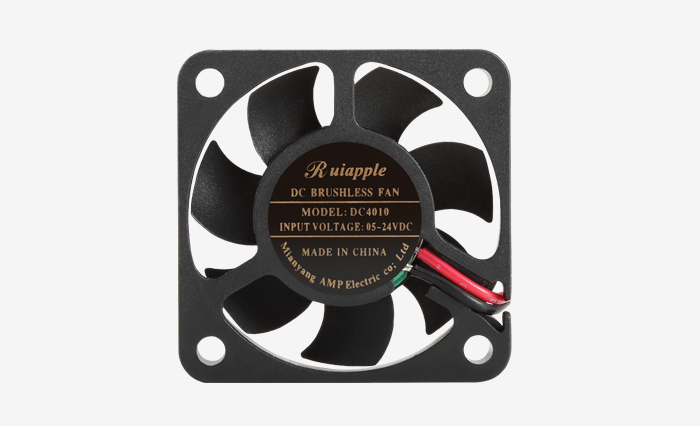

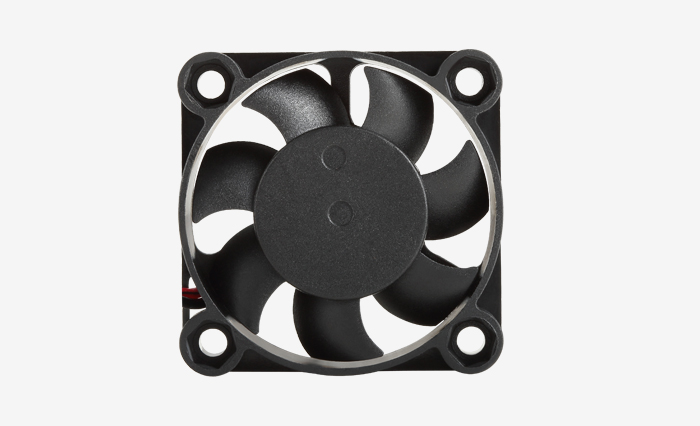

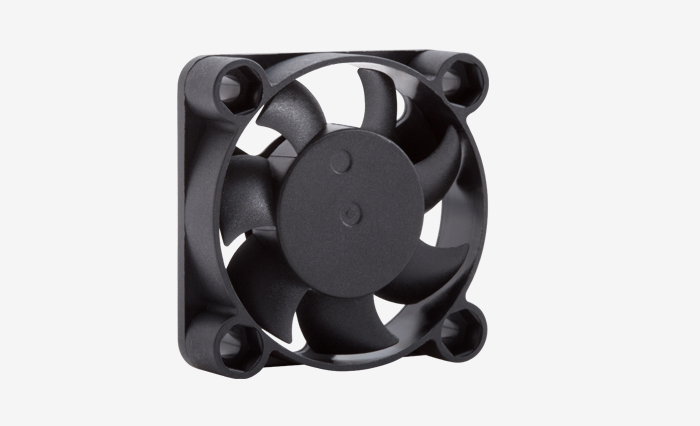

DC Axial Fans (40x40x10mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE（VDC) | CURRENT (A) | POWER （W) | SPEED（RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE（DBA） |
| RA-DC4010L | 05 12 24 | 0.12 0.06 0.04 | 0.60 0.72 0.96 | 5000 | 4.40 | 2.84 | 24.70 |
| RA-DC4010M | 05 12 24 | 0.17 0.08 0.05 | 0.85 0.96 1.20 | 6000 | 5.60 | 3.84 | 28.50 |
| RA-DC4010H | 05 12 24 | 0.12 0.09 0.06 | 0.60 1.08 1.44 | 7000 | 6.90 | 5.25 | 32.3 |
Description:
The advantages of 5V/12V 40mmx40mmx10mm brushless DC cooling fan with 9 Blades is including low-noise, low-vibration, reliable running and so on. Mainly apply to auto-control system, electronics, medical facilities, computers, PU power unit, welder, packing and print equipment.
Related Product: DC Fan 40x40x10mm 7 Blades.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
