DC Axial Fans (80x80x20mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°

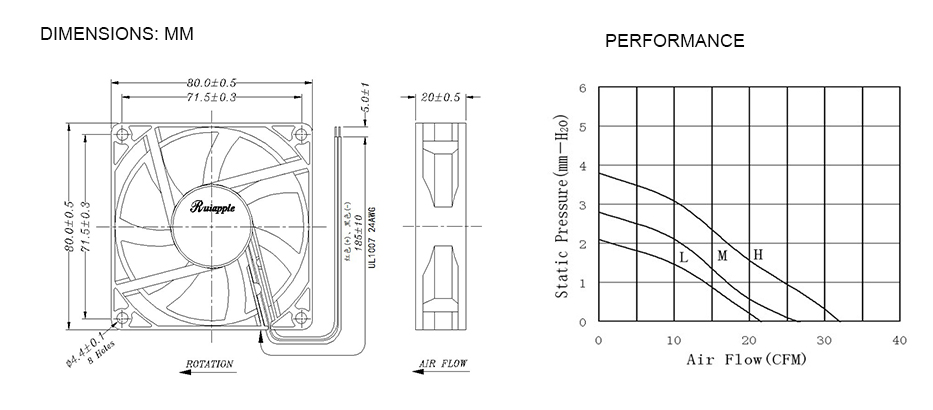

| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC8020L | 12 24 | 0.10 0.06 | 1.20 1.44 | 2500 | 19.86 | 2.15 | 30.50 |
| RA-DC8020M | 12 24 | 0.14 0.09 | 1.68 2.16 | 3000 | 23.92 | 2.97 | 34.00 |
| RA-DC8020H | 12 24 | 0.19 0.12 | 2.28 2.88 | 3500 | 26.97 | 3.81 | 38.50 |
Description:

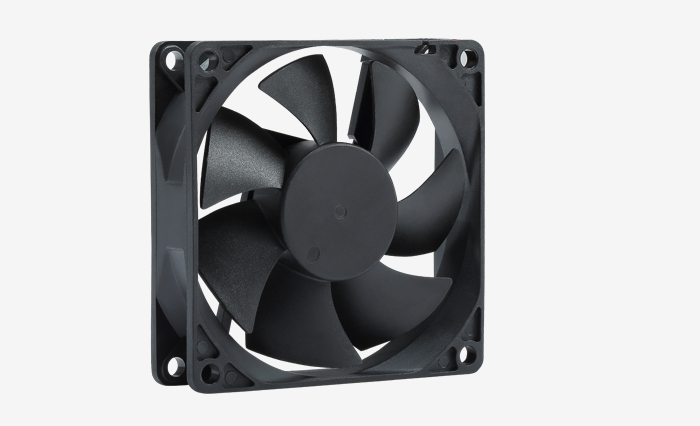

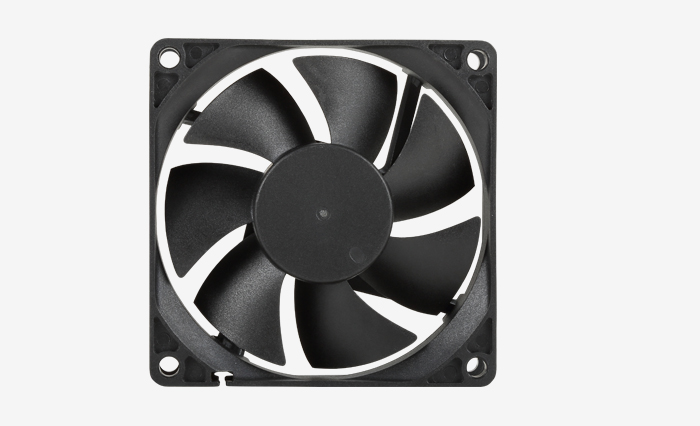

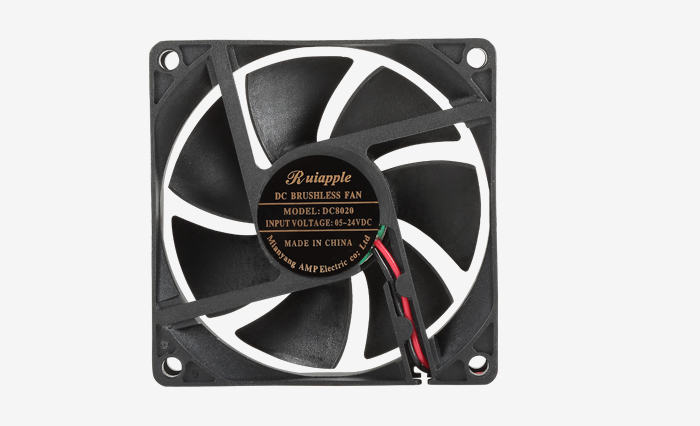

This 24V 8cm axial fan with DC brushless motor provides better cooling efficiency for computer and hard disc. Silent fans can both enhance the convection and cooling efficiency. Detail dimension 80x80x20 80mm.
In addition, ball bearing makes fan's life get longer it could efficiently extend fan's life, and reduce fan replacement frequency.
Related Product: 80x80x15mm DC Fan, 80x80x25mm DC Fan, 80x80x38mm DC Fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
