DC Centrifugal Fans

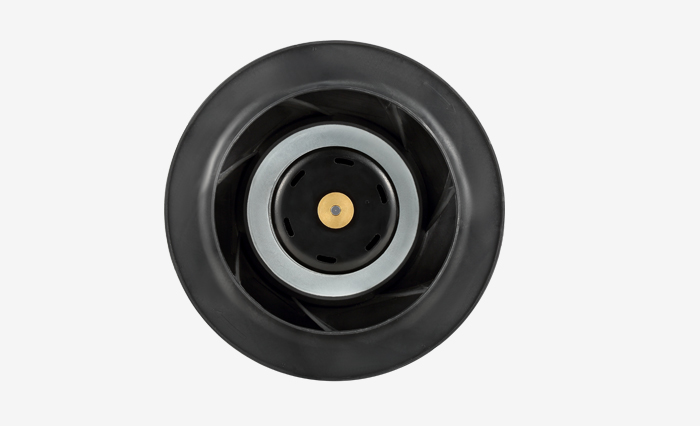

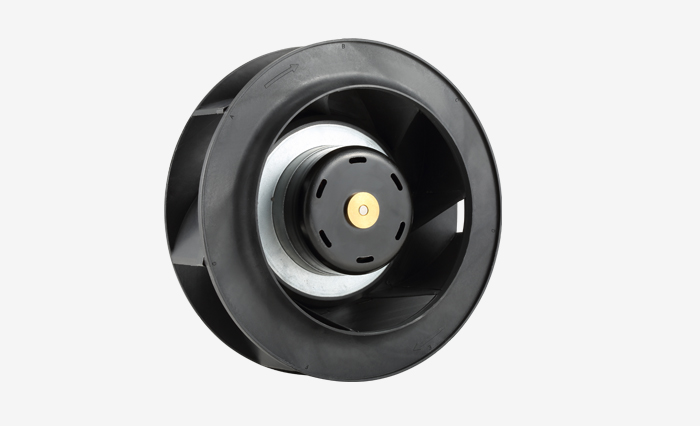

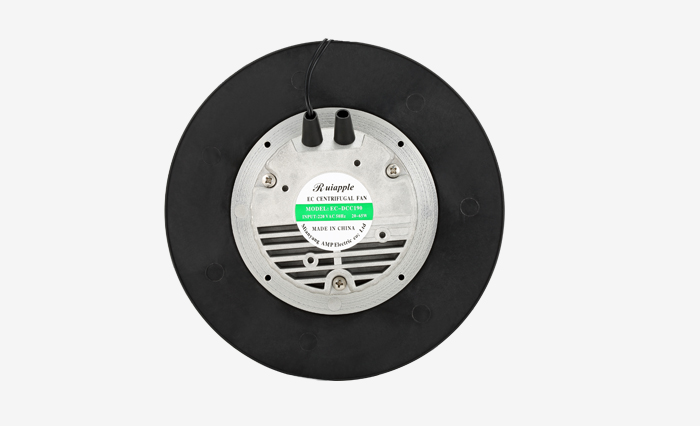

RA-DCC190

DC Centrifugal Fan Design Features:

1.Bearing System: Ball Bearing & Sleeve Bearing

2.Impeller: PA66 With Fiber Class Filed Ul-94v0

3.Mounting Base: Die Cast Aluminum

4.Motor Type: DC Brushless

5.Connection: Wire & Terminal

              Red (+) / Blk(-) / Blu(PWM)

6.Out Put Signal: Fg—Yell Rd—Wite

7.Protection: Polar & Locked

8.IP Class: Max IP68 )

9.Insulation Class: B

10.Compressive Strength: 500v

11.Storage Temperature: -20°--- 70°

12.Working Temperature: -10°--- 60°

Inquire Now
Product Details

RA-DCC190

RA-DCC190RA-DCC190


MODEL NO.

VOLTAGE

(V)

CURRENT
(A)
POWER
(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAX PRESSURE
(mm-H2O)
NOISE
(dBA)
RA-DCC190L24
48
1.00
0.60
24.00
28.80
2000232.0023.4055
RA-DCC190M24
48
1.50
0.80
36.00
38.40
2500293.0034.5062
RA-DCC190H24
48
2.50
1.30
60.00
62.40
2900366.6058.5071


Description:

We manufacturer and offer high performance 48VDC/24VDC/12VDC centrifugal fan. Ruiapple as a famous cooling fan supplier in domestic China, provide comprehensive cooling system solutions for customer


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
