AC Centrifugal Fans

RA-ACC400

AC Centrifugal Fan Design Features:

1. Bearing System: Ball Bearing

2. Impeller: Aluminum

3. Housing: Die Casting Aluminum

4. Motor Type: Ac Brushless

5. Insulation Class: E

6. Compressive Strength: 1500v

7. Storage Temperature: -20°--- 70°

8. Working Temperature: -10°--- 60°

Inquire Now
Product Details

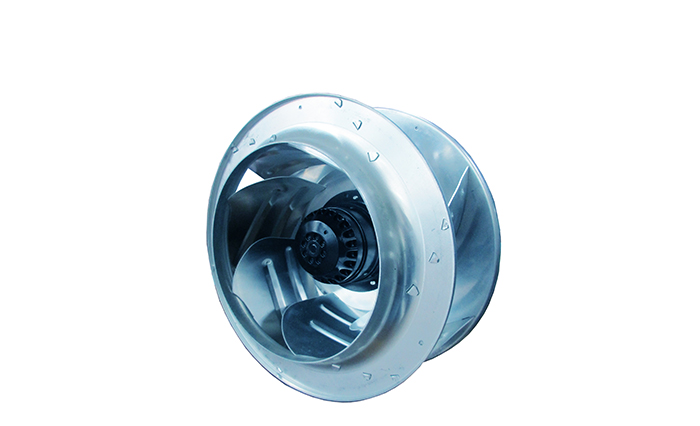

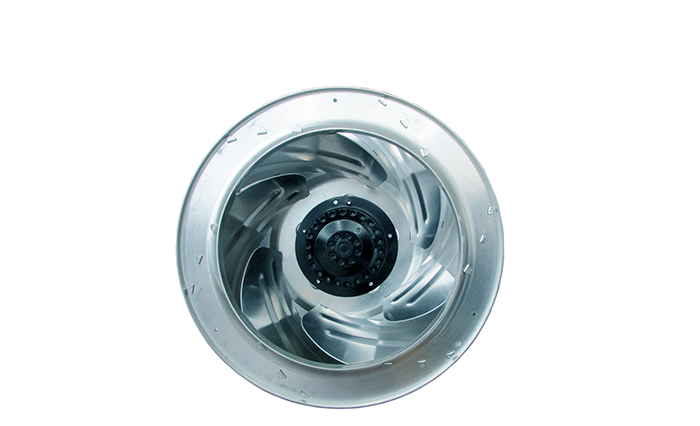

RA-ACC400 Centrifugal fan backward

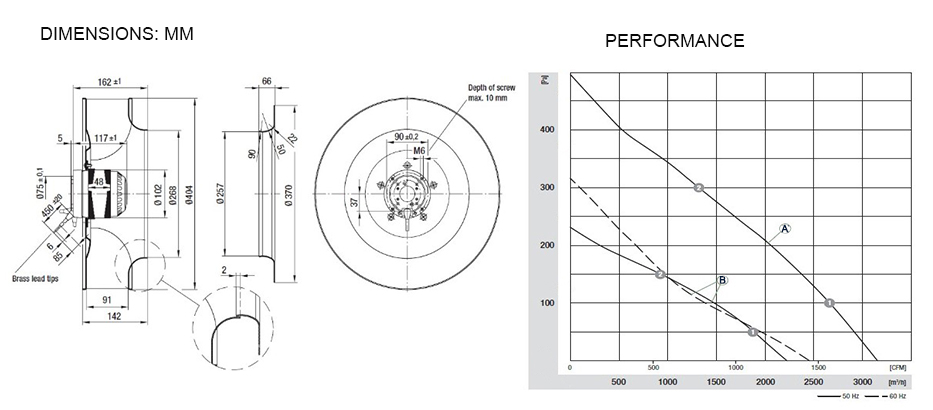

Specification:

MODEL NO.

 VOLTAGE

(VAC)

FREQUENCY

(Hz)

 CURRENT

(A)

POWER

(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAX PRESSURE

(mm-H2O)

NOISE

(dBA)

RA-ACC400A

230

50

1.20

270

1300

1854

49.50

68

RA-ACC400B

230

50

0.52

117

910

1310

23.90

62

60

0.70

160

1000

1445

32.50

64



Description:

230V AC centrifugal fans with backward curved blades are designed for operating without a scroll housing. For the AC centrifugal fans with external rotor motors, the motor is positioned in the impeller, which results in an especially compact design in addition to optimal cooling of the motor.


Related Products:

AC centrifugal fan


We can also adjust all the parameters according to your requirements.
