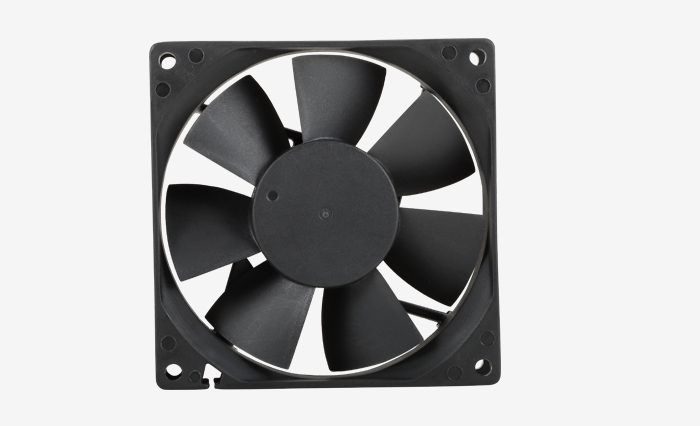

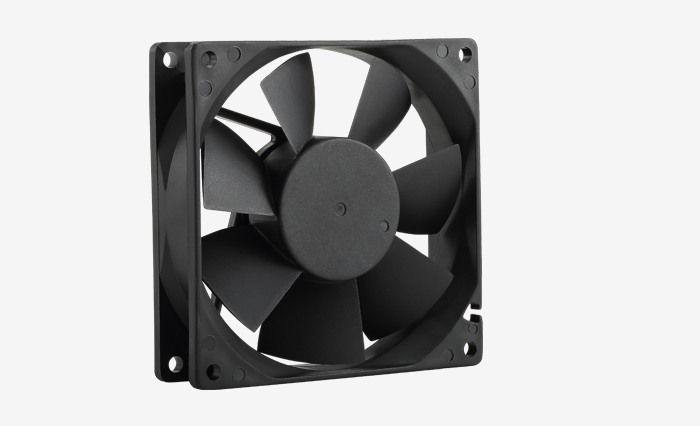

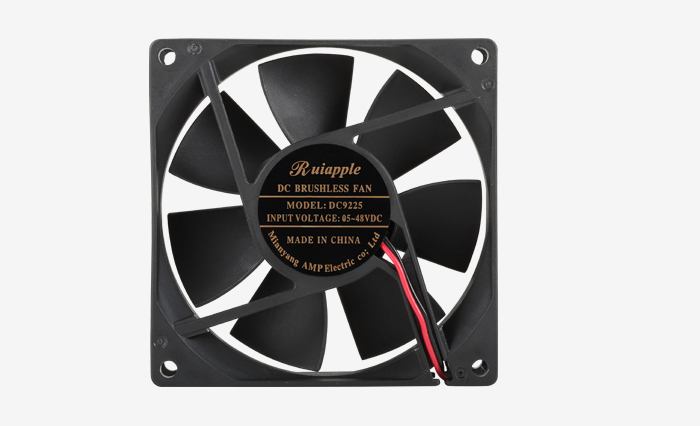

DC Axial Fans (92x92x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODELNO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAXAIRFLOW (CFM) | MAXSq. （mm-H2O) | NOISE （DBA） |
| RA-DC9225L | 12 24 | 0.09 0.07 | 1.08 1.68 | 2000 | 34.93 | 1.62 | 27.60 |
| RA-DC9225M | 12 24 | 0.14 0.10 | 1.68 2.40 | 2500 | 46.98 | 2.91 | 32.40 |
| RA-DC9225H | 12 24 | 0.24 0.18 | 2.88 4.32 | 3000 | 52.80 | 3.92 | 37.80 |
Description:
Best low noise slim 92mm 92x92x25 DC brushless cooling fan offers reliable, stable performance with the perfect balance of silence and efficiency. This 12v 92mm dc cooling fan is mainly used for PC computer CPU, server system. Supplied by 5v, 24v is available.
Related Product: 92x92x38mm fan
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
