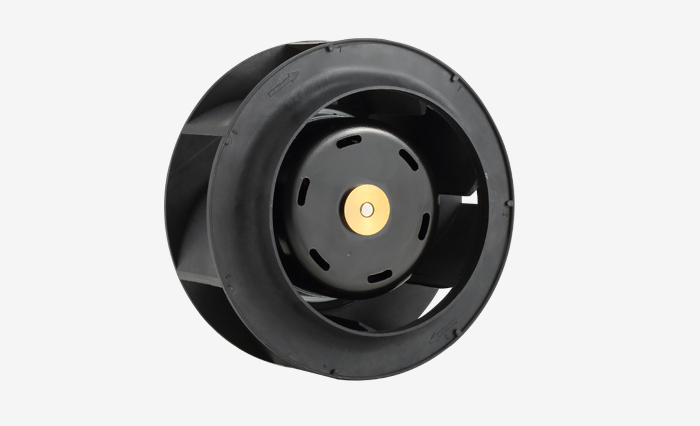

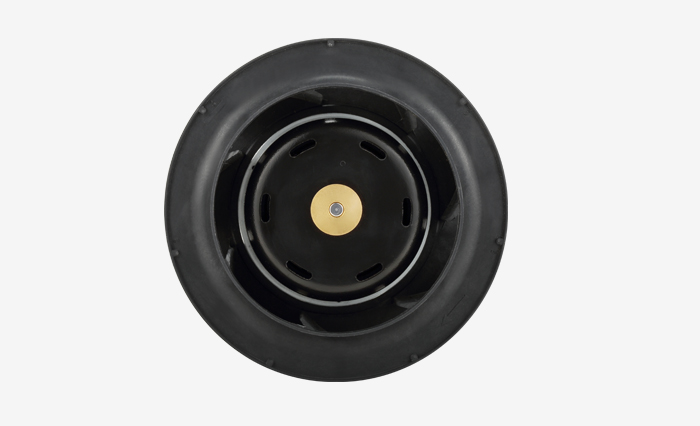

DC Centrifugal Fans

RA-DCC133

Small DC Centrifugal Fan Features:

1.Bearing System: Ball Bearing & Sleeve Bearing

2.Impeller: PA66 With Fiber Class Filed Ul-94v0

3.Mounting Base: Die Cast Aluminum

4.Motor Type: DC Brushless

5.Connection: Wire & Terminal

              Red (+) / Blk(-) / Blu(PWM)

6.Out Put Signal: Fg—Yell Rd—Wite

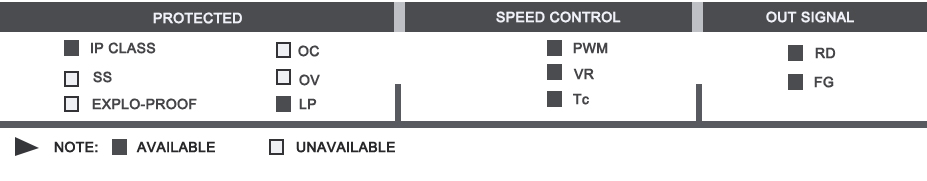

7.Protection: Polar & Locked

8.IP Class: Max IP68 )

9.Insulation Class: B

10.Compressive Strength: 500v

11.Storage Temperature: -20°--- 70°

12.Working Temperature: -10°--- 60°

Inquire Now
Product Details

RA-DCC133

RA-DCC133

RA-DCC133


MODEL NO.VOLTAGE
(V)
CURRENT
(A)
POWER
(W)
SPEED
(RPM)
MAX AIR FLOW(CFM)MAX PRESSURE
(mm-H2O)
NOISE
(dBA)
RA-DCC133L24
48
1.00
0.50
24.00
24.00
4000162.5035.0061
RA-DCC133H24
48
1.30
0.63
31.20
30.24
4600185.5045.0065


Description:

This small DC brushless centrifugal fan is with compact structure, could save more space. Made by Ruiapple, a direct DC brushless centrifugal fan factory in China. Related voltage: 24V, 48V, 12V.


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
