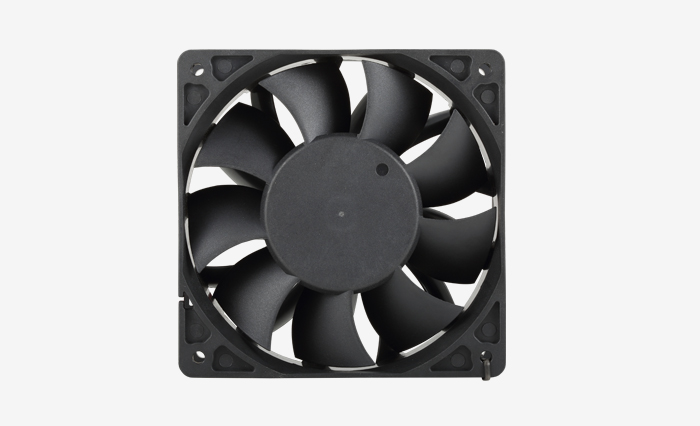

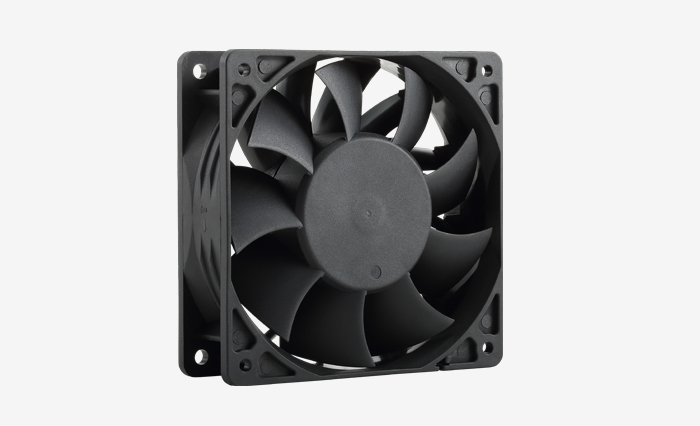

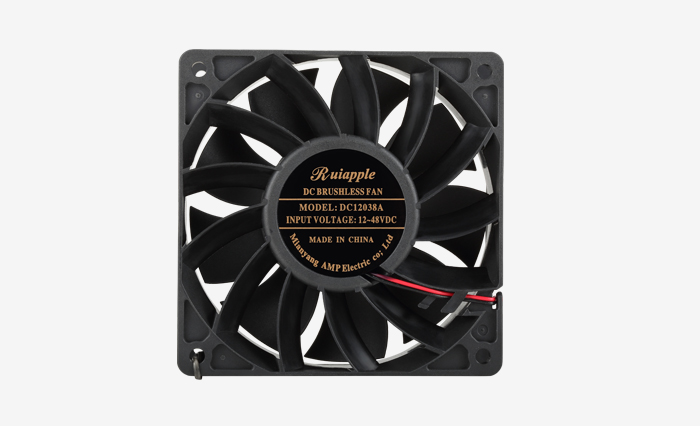

DC Axial Fans (120x120x38mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
MODEL NO. | VOLTAGE (V) | CURRENT (A) | POWER (W) | SPEED（RPM) | MAX AIR FLOW (CFM) | MAX Sq. (mm-H2O) | NOISE （DBA） |
RA-DC12038A L | 12 24 48 | 0.93 | 11.60 | 3500 | 146.18 | 13.98 | 57.70 |
RA-DC12038A M | 12 24 48 | 1.47 | 17.64 | 4000 | 163.31 | 17.35 | 59.50 |
RA-DC12038A H | 12 24 48 | 2.25 | 27.00 | 4500 | 183.33 | 21.61 | 64.80 |
RA-DC12038A U | 12 24 48 | 2.25 1.16 0.55 | 27.00 27.84 26.40 | 5000 | 225.00 | 21.70 | 69.00 |
Description:
This 120mm 120x120x38 case fan is best choice for pc computer. Good ventilation is mandatory for every hot electronic device, especially for pc computer. Optional voltage 12v, 24v. Not to mention the enhanced performance and lifetime of your expensive components. The Ruiapple standardiz ed fan sizes make installation possible in a number of applications such as; computers, consumer electronics and home appliances. Ruiapple is a leader in the field of component cooling and have been producing DC fan for over 17 years in China. The Ruiapple fan are silent and powerful cooling fans balanced to perfection.
Related Products:
View More Products:
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
