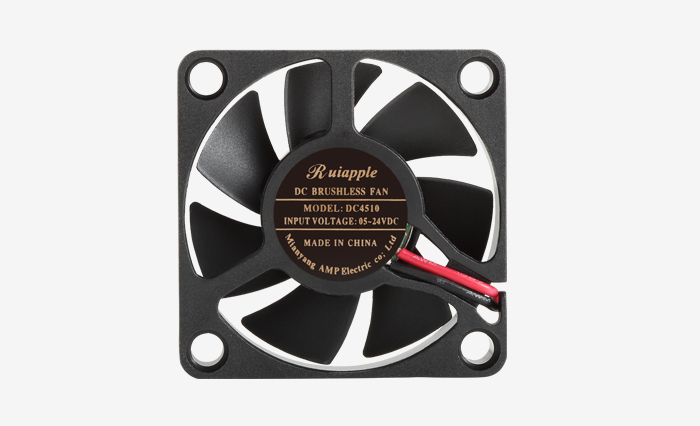

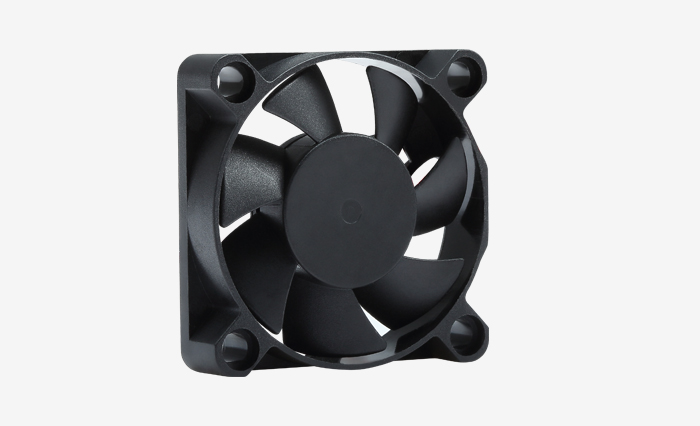

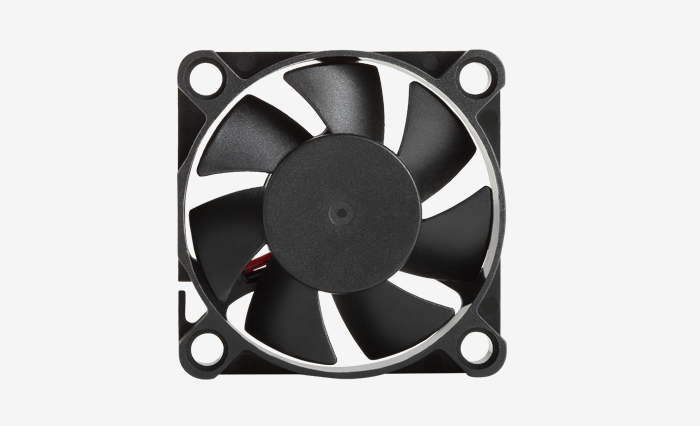

DC Axial Fans (45x45x10mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°

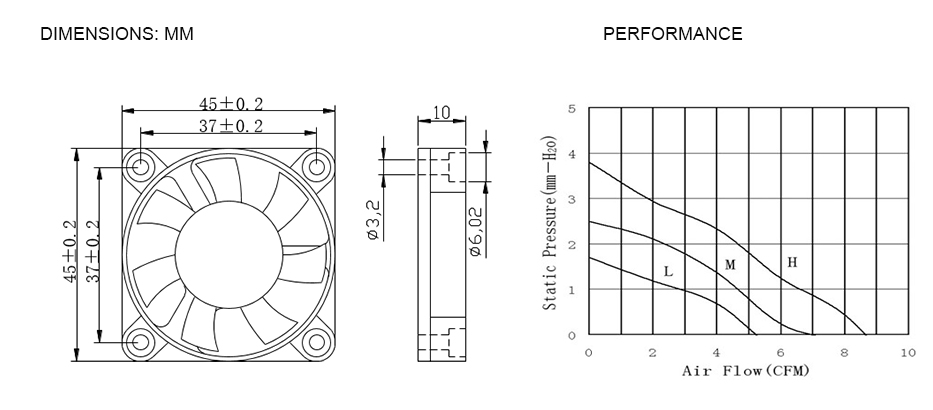

| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC4510L | 05 12 | 0.13 0.08 | 0.65 0.96 | 4000 | 5.40 | 1.70 | 21 |
| RA-DC4510M | 05 12 24 | 0.16 0.10 0.08 | 0.80 1.20 1.92 | 5000 | 6.90 | 2.50 | 25 |
| RA-DC4510H | 05 12 24 | 0.21 0.12 0.08 | 1.05 1.44 1.92 | 6000 | 8.40 | 3.80 | 30 |
Description:
Ruiapple has over 20 years experiences of producing 45x45x10 45 mm DC fan for PC Computer. This 45mm dc case fan is widely used in PC, computer cooling.
Related Product: DC Cooling Fan 40x40x10mm.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
