DC Axial Fans (140x140x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE （mm-H2O) | NOISE （dBA） |
| RA-DC14025L | 12 24 | 0.16 0.09 | 1.96 2.16 | 1200 | 88.00 | 2.80 | 25 |
| RA-DC14025M | 12 24 | 0.21 0.11 | 2.52 2.64 | 1600 | 104.00 | 3.90 | 29 |
| RA-DC14025H | 12 24 | 0.27 0.14 | 3.24 3.36 | 2000 | 135.00 | 6.40 | 34 |
Description:

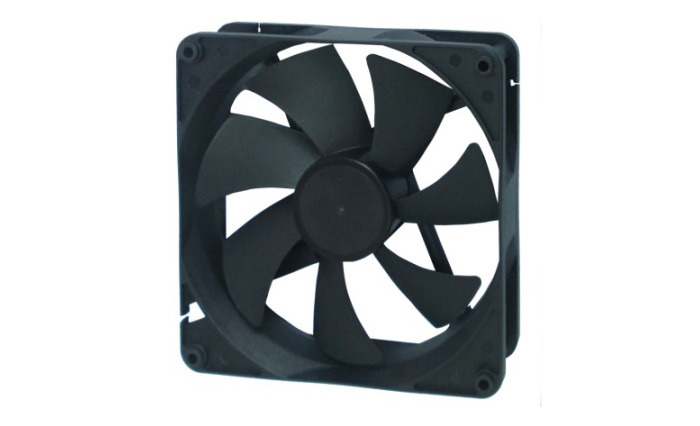

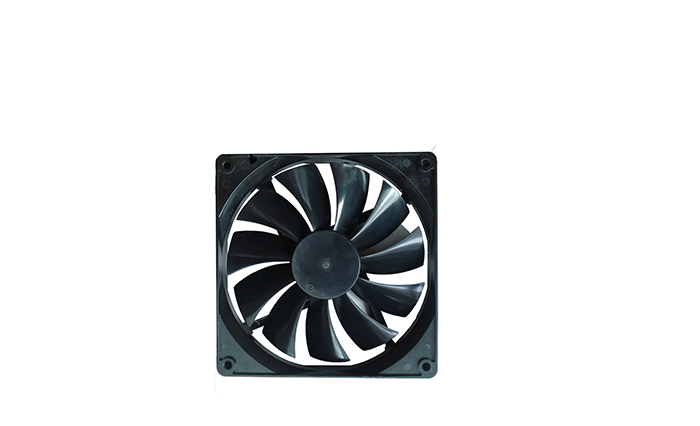

This 140x140x25 140mm DC axial cooling fan use high performance brushless DC motors. They feartures low noise, high static pressure, and high airflow, and are optimal for cooling equipment. 12V or 24V. From Ruiapple.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
