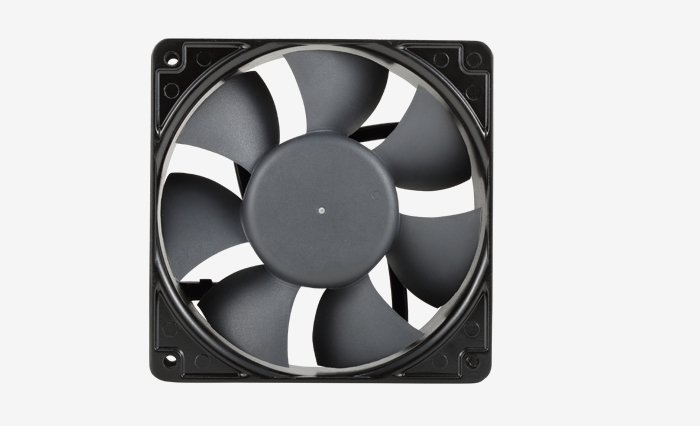

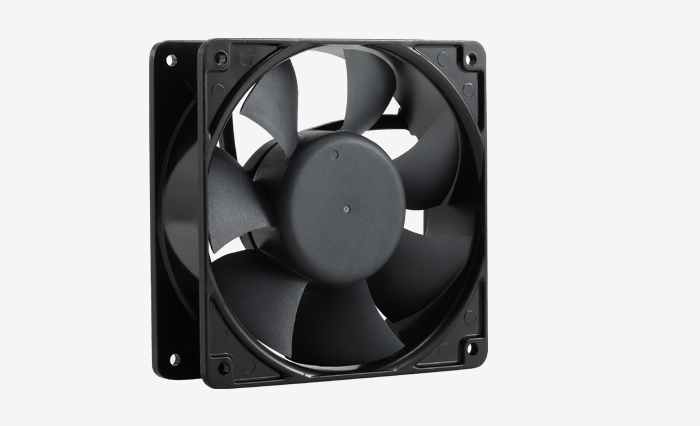

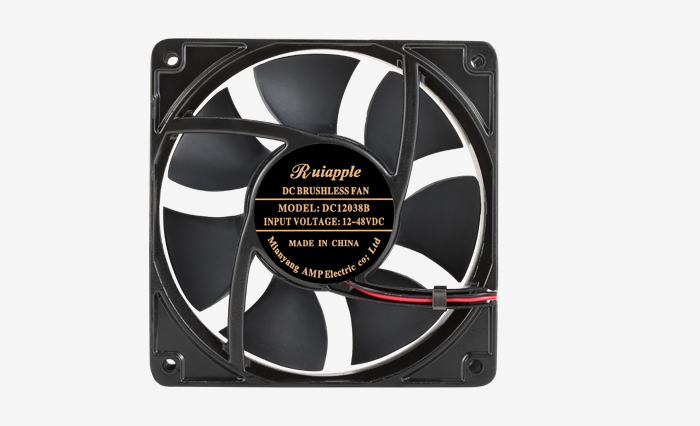

DC Axial Fans (120x120x38mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC12038BL | 12 24 48 | 0.15 0.12 0.06 | 1.80 2.88 2.88 | 4500 | 76.99 | 13.02 | 48.60 |
RA-DC12038BM | 12 24 48 | 0.25 0.19 0.09 | 3.00 4.56 4.32 | 5500 | 88.97 | 19.27 | 54.00 |
| RA-DC12038BH | 12 24 48 | 0.45 0.26 0.12 | 5.40 6.24 5.76 | 6500 | 108.02 | 26.32 | 59.00 |
Description:

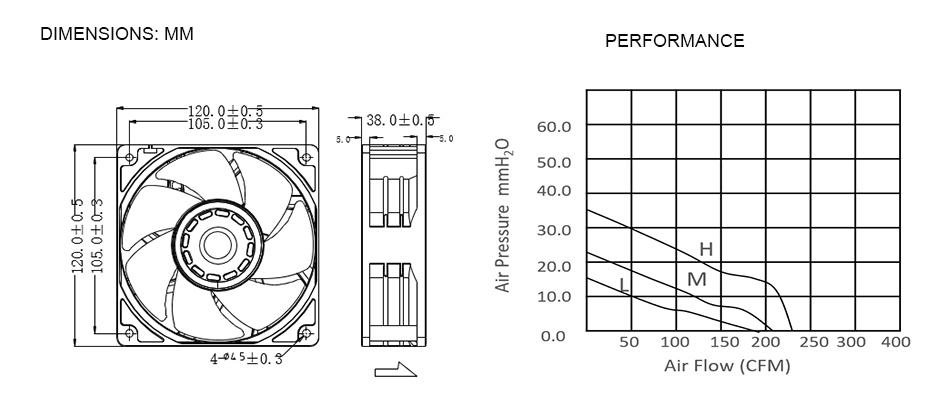

Ruiapple manufactures and sales high performance 120mm axial fan features high speed, high static pressure, and high CFM. Optional voltage 12V, 24V, 48V. Detail dimension 120x120x38mm. We are direct factory with 17 years experience in axial fan manufacturing in China.
Related Products:
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
