AC Axial Fan 80x80x25 Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
| MODEL NO. | VOLTAGE (V) | FREQUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC8025L22 | 220/240 | 50/60 | 0.09/0.08 | 11/10 | 2100/2500 | 17/18 | 3.30/3.55 | 25/29 |
| RA-AC8025L11 | 110/120 | 50/60 | 0.11/0.10 | 11/10 | 2100/2500 | 17/18 | 3.30/3.55 | 25/29 |
| RA-AC8025H22 | 220/240 | 50/60 | 0.12/0.10 | 13/14 | 2400/2800 | 21/23 | 4.57/5.33 | 29/33 |
| RA-AC8025H11 | 110//120 | 50/60 | 0.19/0.17 | 13/14 | 2400/2800 | 21/23 | 4.57/5.33 | 29/33 |
Description:

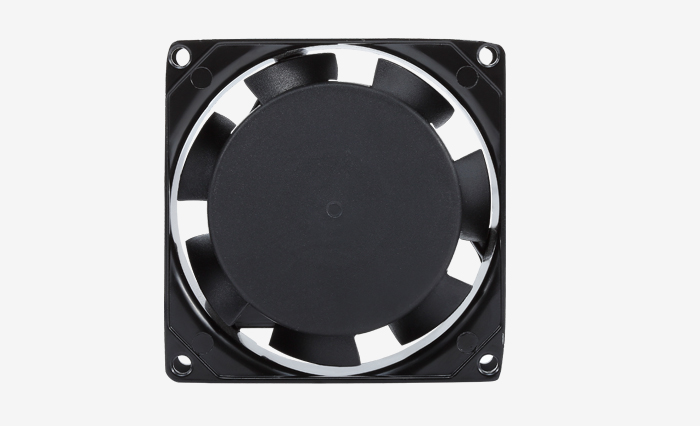

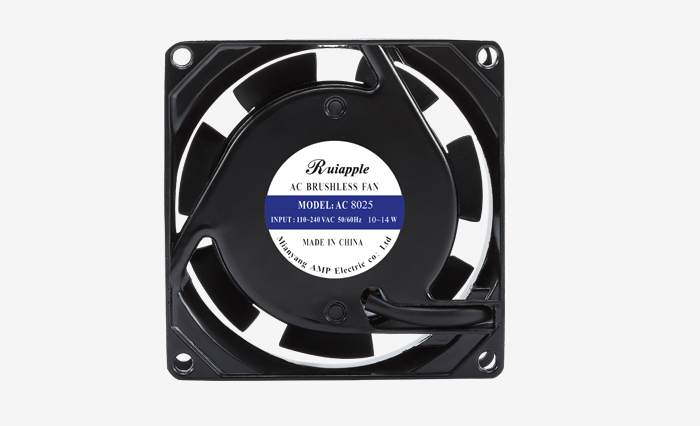

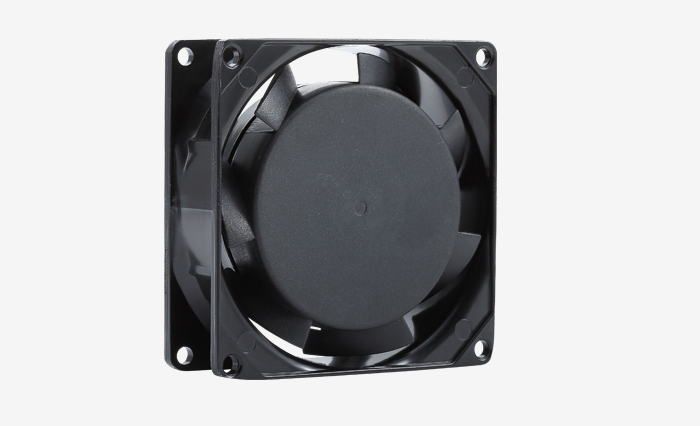

The 80x80x25 mm AC axial fan is housed in die cast aluminum with thermoplastic blades. Containing long life dual ball bearings, the fan can run continuously for 67,000 hours and be mounted in any direction. Commonly used for cabinet. Has terminal connectors and can be plugged into a standard outlet with a fan power cord, sold separately. This model can be found in various noise tolerant applications such as casino machines, chicken coops, industrial machinery, arcade systems, and more. A thicker 38mm version is also available for higher airflow applications.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
