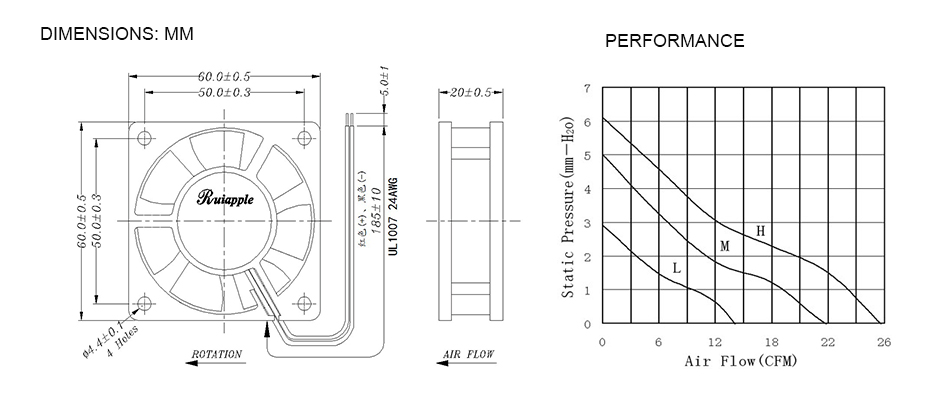

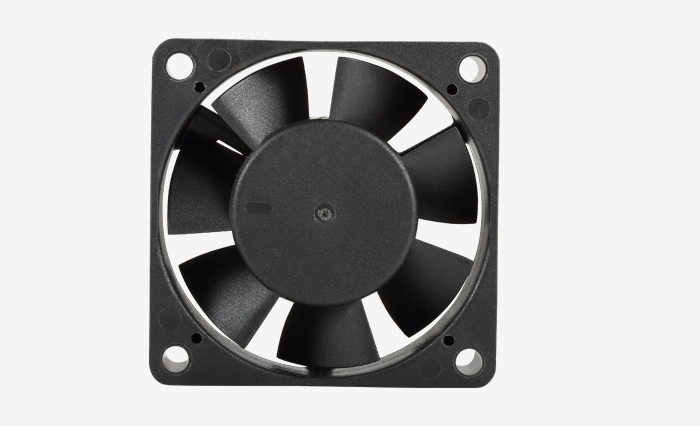

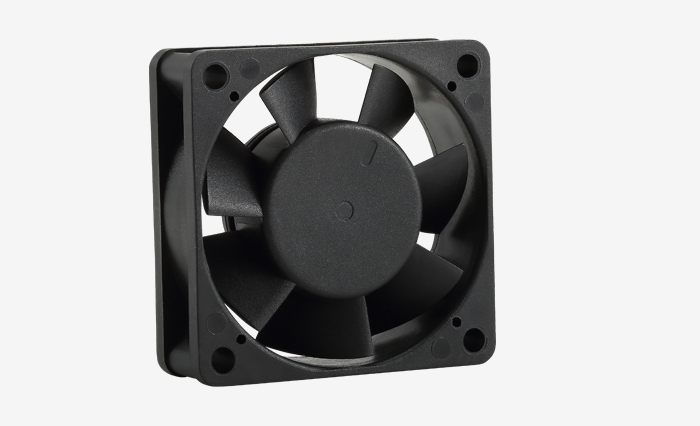

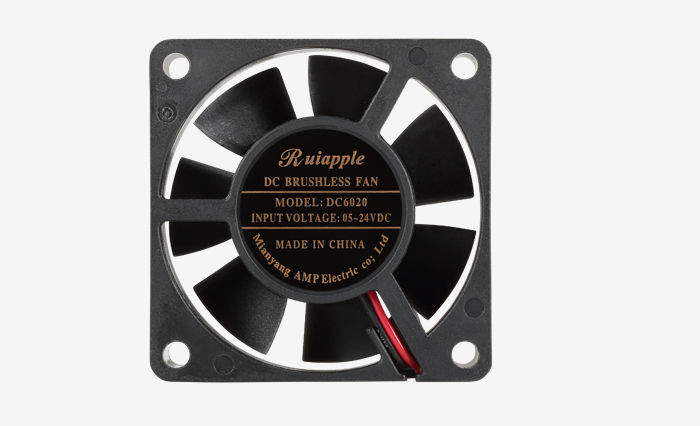

DC Axial Fans (60x60x20mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC6020L | 12 24 | 0.07 0.05 | 0.84 1.20 | 3000 | 10.85 | 2.14 | 23.50 |
| RA-DC6020M | 12 24 | 0.10 0.08 | 1.20 1.92 | 4000 | 13.89 | 3.50 | 32.00 |
| RA-DC6020H | 12 24 | 0.17 0.13 | 2.04 3.12 | 5000 | 17.87 | 5.66 | 38.00 |
Description:
The Ruiapple 12v 60mm cooling fan is commonly used for HTPCs, northbridge, external HDDs, mobile racks, or even active cooling for the RAMS. 24V voltage is in option. Standard size: 60x60x20mm. Made by Ruiapple, a big 12v cooling fan supplier in China. High quality and perfomance guaranteed.
Related Product: 60x60x15 fan, fan 60x60x25
View More Products: DC Axial Fans
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement.
