Home >> PRODUCT >> Fans >> EC Axial Fans

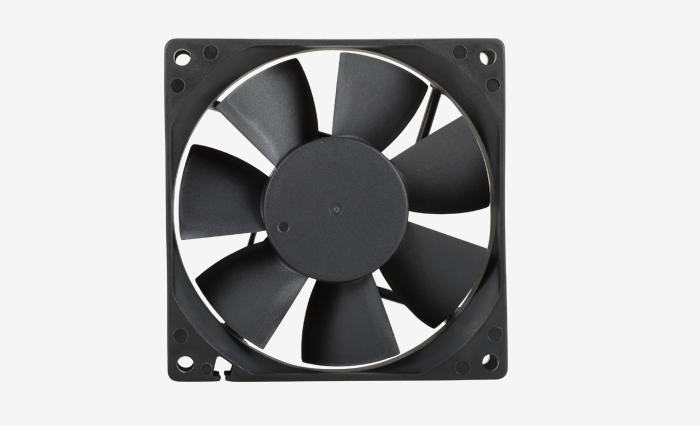

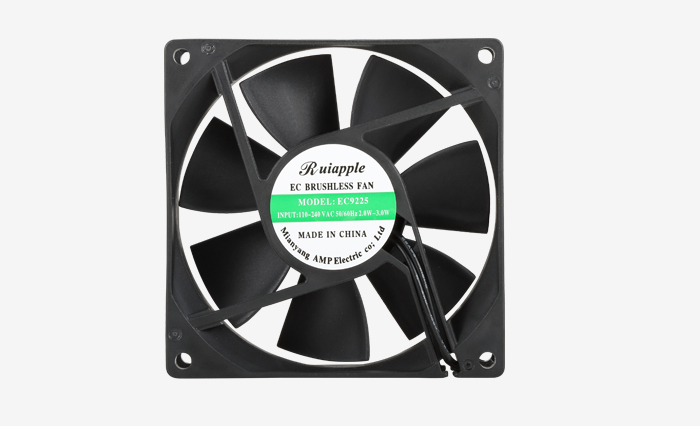

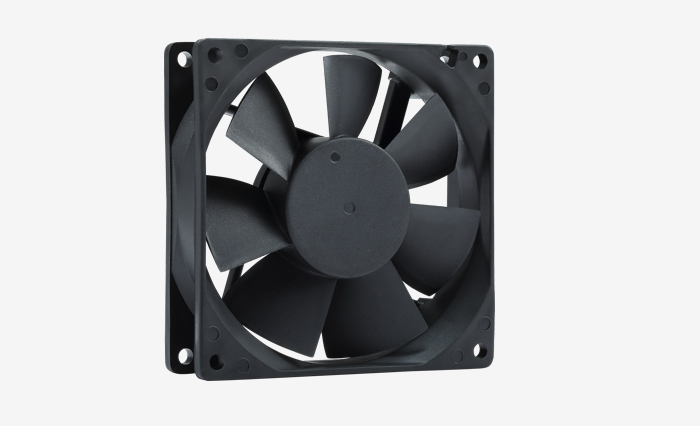

EC Axial Fans

RA-EC9225

EC Axial Fans (92x92x25mm) Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: PBT With Fiber Class Filed Ul-94V0

3. Motor Type: ESM

4. Connection: Wire & Terminal

                        Red (+) / Black(-) / Blue (PWM)

5. Out Put Signal: FG—Yellow   RD—White

6. Insulation Class: B

7. Compressive Strength: 500v

8. Storage Temperature: -20°---  70°

9. Working Temperature: -10°---  60°

Inquire Now
Product Details

RA-DC9225

RA-DC9225RA-DC9225




MODEL NO.

VOLTAGE

(V)

CURRENT
(A)
POWER
(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAXSq.
(mm-H2O)
NOISE
(DBA)
RA-EC9225110-240
0.058
3.00300051.803.5037


Description:

Best low noise slim 92mm 92x92x25 EC brushless cooling fan offers reliable, stable performance with the perfect balance of silence and efficiency. This 92mm ec cooling fan is mainly used for PC computer CPU, server system.


Related Product: 92x92x38mm fan

View More Products: EC Axial Fans


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
