AC Axial Fan Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
Specification:
| MODEL NO. | VOLTAGE (V) | FREUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC17251L22 | 220/240 | 50/60 | 0.15/0.12 | 22/19 | 1900/1800 | 110/106 | 10.16/7.87 | 33/30 |
| RA-AC17251L11 | 110/120 | 50/60 | 0.35/0.33 | 22/21 | 2100/1900 | 125/115 | 10.5/8.20 | 34/31 |
| RA-AC17251M22 | 220/240 | 50/60 | 0.18/0.17 | 27/29 | 2300/2400 | 165/170 | 12.95/13.97 | 38/33 |
| RA-AC17251M11 | 110//120 | 50/60 | 0.42/0.37 | 29/30 | 2300/2400 | 165/170 | 12.95/13.97 | 38/33 |
| RA-AC17251H22 | 220/110 | 50/60 | 0.23/0.21 | 32/30 | 2800/3100 | 190/235 | 16.00/20.06 | 50/45 |
| RA-AC17251H11 | 110/120 | 50/60 | 0.50/0.45 | 38/35 | 2300/2700 | 190/235 | 16.00/20.06 | 35/45 |
Description:

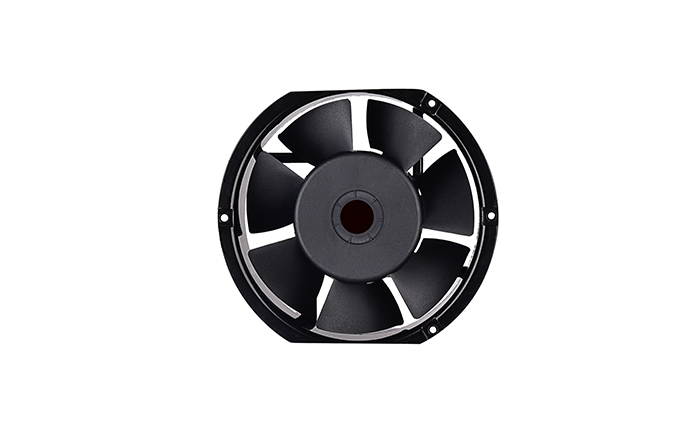

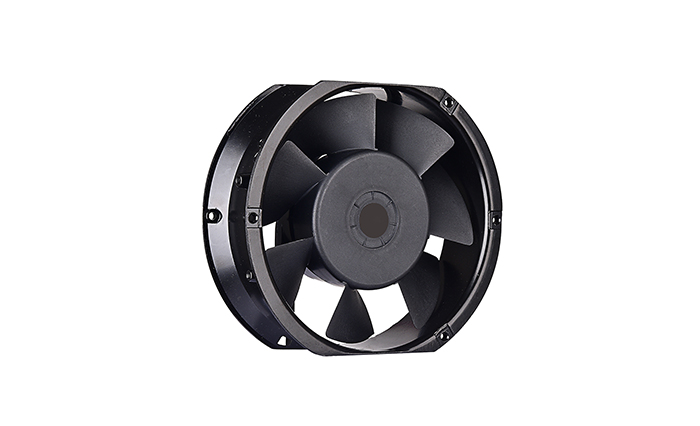

The high speed or low speed 172x150x51 millimeter 220V AC axial fan is housed in die cast aluminum with thermoplastic blades. 110V, 120V, 230V, 240V voltage are in available.
Note: We can also adjust all the parameters according to your requirements.
