DC Axial Fans (172x150x51mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE (V) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC17251L | 12 24 48 | 1.00 0.52 0.24 | 12.00 12.48 11.52 | 2400 | 178.30 | 10.33 | 55.60 |
RA-DC17251M | 12 24 48 | 1.65 0.77 0.44 | 19.80 18.48 21.12 | 2900 | 212.21 | 15.13 | 60.50 |
| RA-DC17251H | 12 24 48 | 2.60 1.20 0.60 | 31.20 28.80 28.80 | 3400 | 252.40 | 20.83 | 63.80 |
| RA-DC17251U | 24 48 | 1.75 0.90 | 42.00 43.20 | 4000 | 310.00 | 24.00 | 65.00 |
Description:

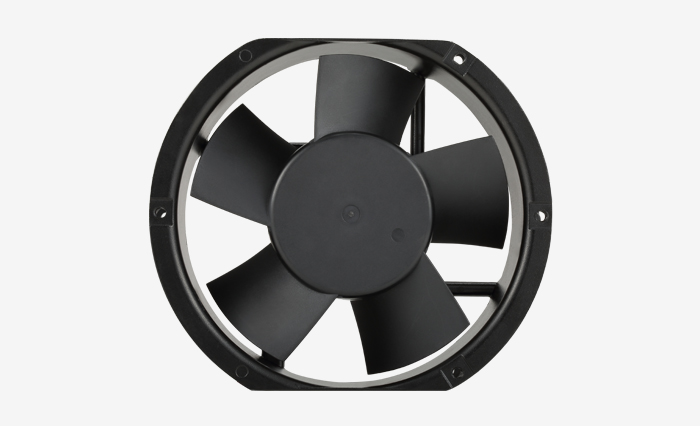

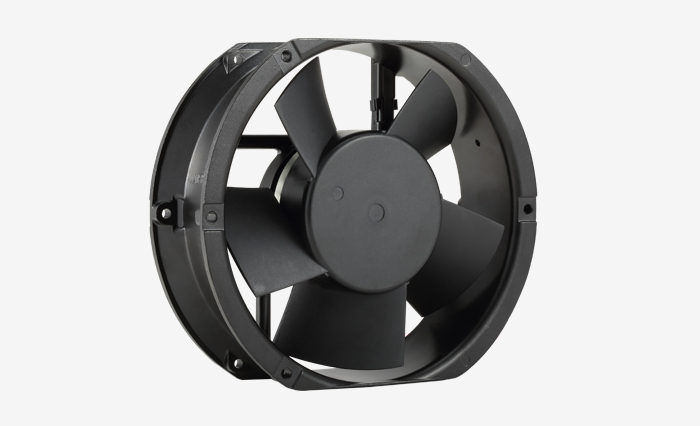

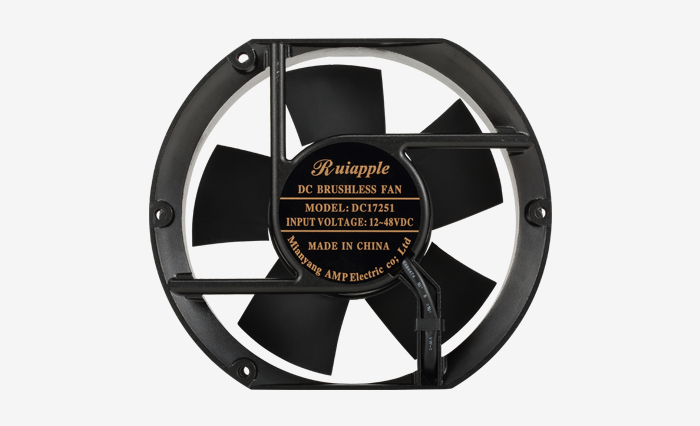

This 48V 172x150x51 mm DC brushless cooing fan with 5 blades is high speed and airflow. Available with multiple features for improved fan operation and performance. 24 VDC or 48 VDC. Made in China, by Ruiapple.
Related Product: Cooling Fan 3 Blades
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
