Design Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Cast Aluminum
4. Motor Type: Dc Brushless
5. Connection: Wire & Terminal
Red (+) / Blk(-) / Blu(PWM)
6. Out Put Signal: Fg—Yell Rd—Wite
7. Protection: Polar & Locked
8. IP Class: Max IP68 )
9. Insulation Class: B
10. Compressive Strength: 500v
11. Storage Temperature: -20°--- 70°
12. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX PRESSURE （mm-H2O) | NOISE （dBA） |
| RA-DB7530L | 05 12 24 | 0.20 0.12 0.14 | 1.00 1.44 3.36 | 2500 | 7.70 | 6.98 | 34.6 |
| RA-DB7530M | 05 12 24 | 0.30 0.16 0.10 | 1.50 1.92 2.40 | 3000 | 9.80 | 11.30 | 38.9 |
| RA-DB7530H | 12 24 | 0.27 0.18 | 3.24 4.32 | 3500 | 11.70 | 16.96 | 42.7 |

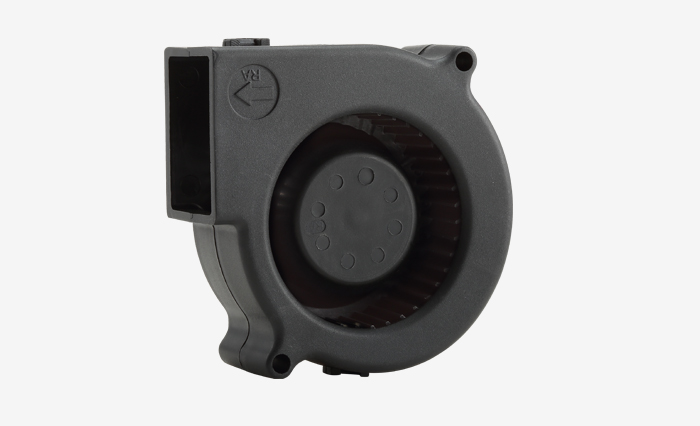

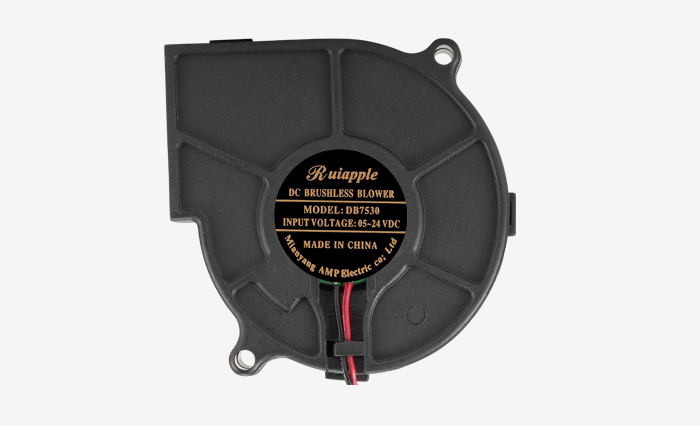

DC Brushless Blower Fan 12v 75mm Blower Fan
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
