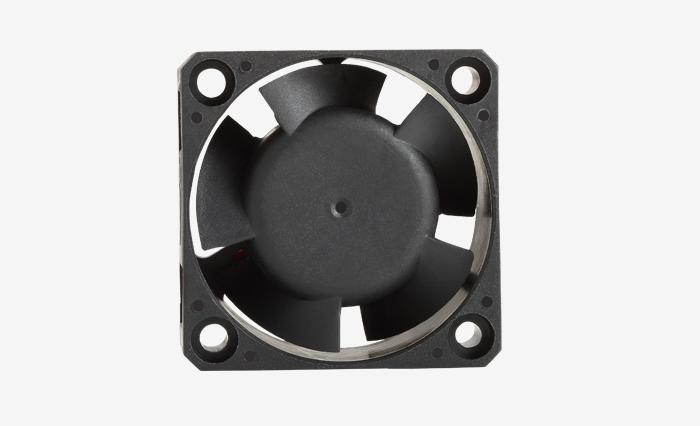

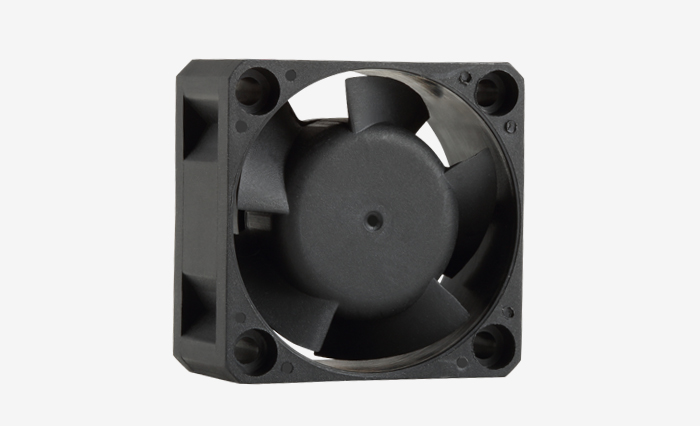

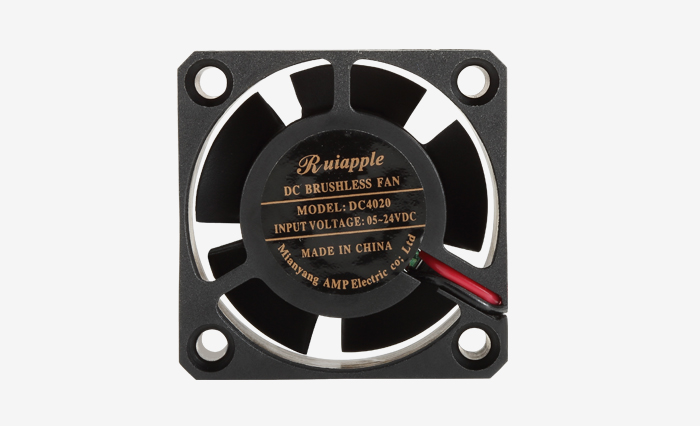

DC Axial Fans (40x40x20mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
0.21
0.11
0.08
MODEL NO. | VOLTAGE （VDC) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
RA-DC4020 L | 05 12 24 | 0.18 | 0.90 | 7000 | 6.79 | 4.77 | 28.40 |
RA-DC4020 M | 05 12 24 | 0.21 0.11 0.08 | 1.05 1.32 1.92 | 8000 | 7.45 | 6.29 | 31.50 |
RA-DC4020 H | 12 24 | 0.10 0.09 | 1.56 2.16 | 9000 | 8.35 | 7.38 | 35.20 |
Description:
This 40mm 40x40x20 5V DC brushless fan is a great choice for cooling your silent PC computer. It is an ideal replacement fan for chipset, external HDD case cooling fan, and removable case cooling fan. 12V, 24V are available. From Ruiapple, a professional DC brushless fan supplier in China.
Related Product: DC Brushless Cooling Fan 40x40x10mm.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client's requirement.
