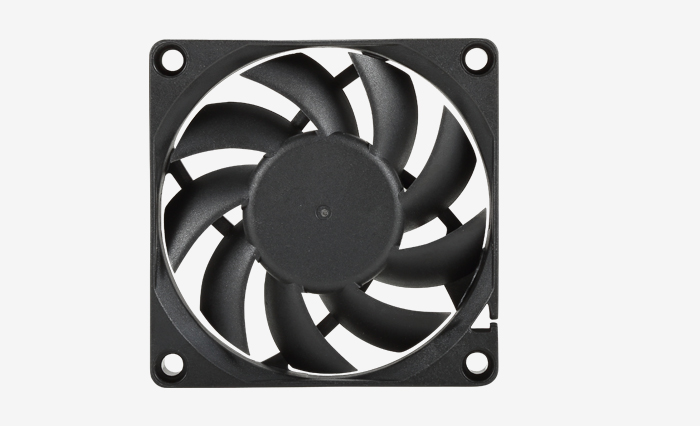

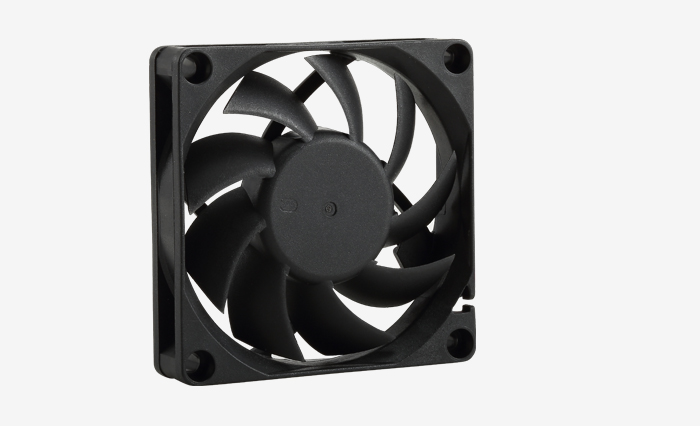

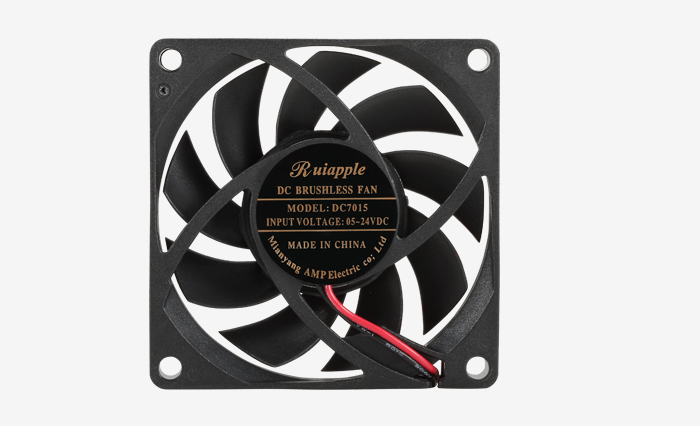

DC Axial Fans (70x70x15mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC7015L | 12 24 | 0.09 0.08 | 1.08 1.92 | 3000 | 12.21 | 2.05 | 28.60 |
| RA-DC7015M | 12 24 | 0.13 0.09 | 1.56 2.16 | 3500 | 17.91 | 2.83 | 33.50 |
| RA-DC7015H | 12 24 | 0.17 0.10 | 2.04 2.40 | 4000 | 25.68 | 3.58 | 36.20 |
Description:

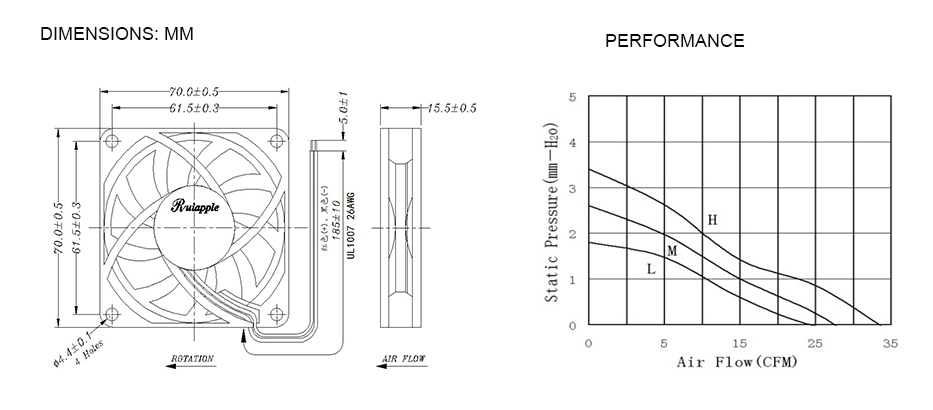

Ruiapple 12V 70mm DC fan features long-life, low noise, efficient cooling. Detail dimension 70x70x15. Optional voltage 12v, 24v, 5v. PWM control is available. Most used on computer cpu cooling. Factory direct sale in China.
Related Product: 70x70x10mm fan, 70x70x25mm fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
