DC Axial Fans (70x70x25mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE （V) | CURRENT (A) | POWER （W) | SPEED （RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-DC7025L | 12 24 | 0.12 0.08 | 1.44 1.92 | 3000 | 26.10 | 3.37 | 31.00 |
| RA-DC7025M | 12 24 | 0.22 0.13 | 2.64 3.12 | 4000 | 35.40 | 5.77 | 38.50 |
| RA-DC7025H | 12 24 | 0.42 0.21 | 5.04 5.04 | 5000 | 45.10 | 8.95 | 44.30 |
Description:

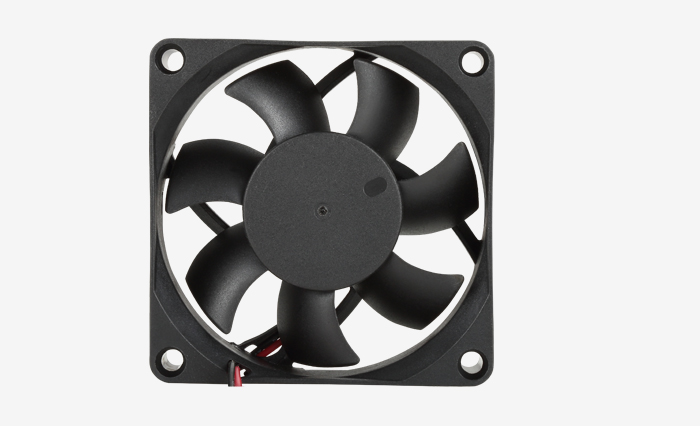

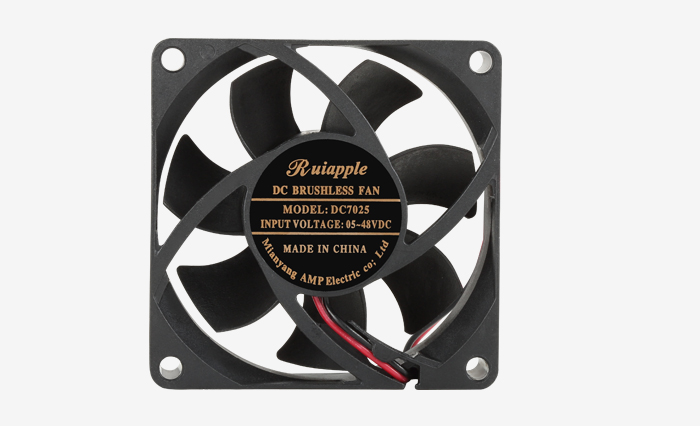

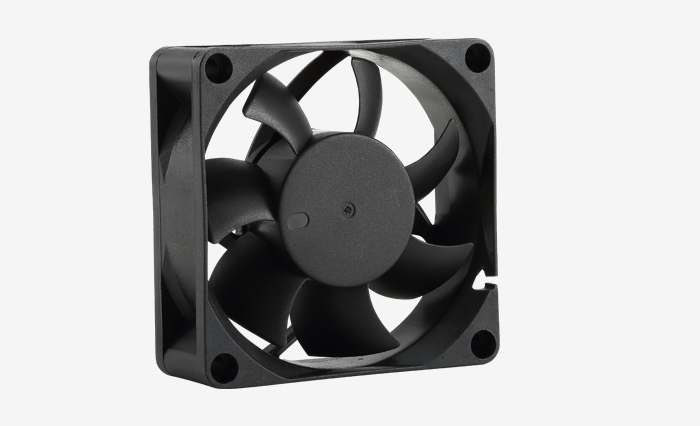

Ruiapple 70mm 70x70x25 axial fan features high cfm, low noise and long life expectancy. Optional voltage, 24v, 12v, 5v. Ruiapple manufactures a wide variety fan sizes for all of your cooling needs.
Related Product: 70x70x15mm dc fan, 70x70x10mm fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
