DC Blowers

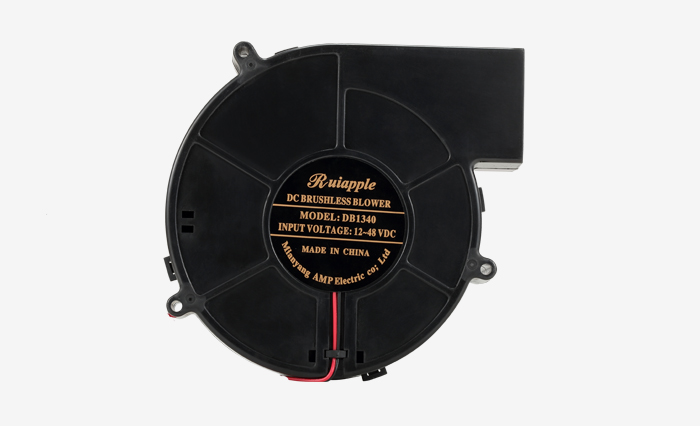

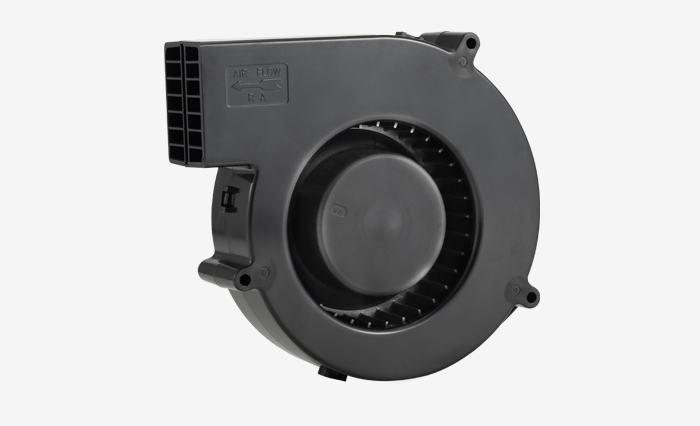

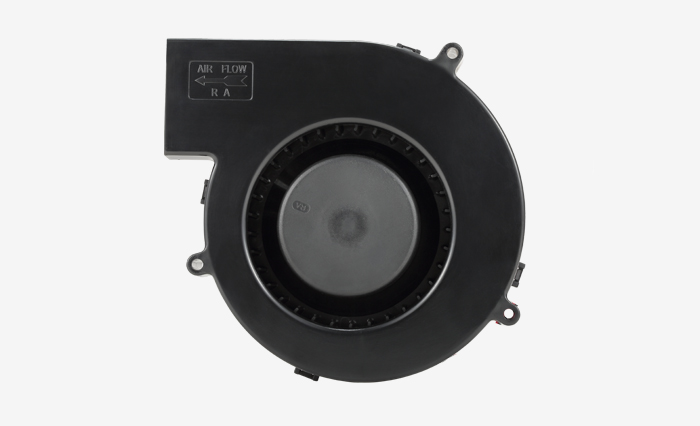

RA-DB1340

Design Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: PBT With Fiber Class Filed Ul-94v0

3. Housing: Die Cast Aluminum

4. Motor Type: Dc Brushless

5. Connection: Wire & Terminal

              Red (+) / Blk(-) / Blu(PWM)

6. Out Put Signal: Fg—Yell Rd—Wite

7. Protection: Polar & Locked

8. IP Class: Max IP68 )

9. Insulation Class: B

10. Compressive Strength: 500v

11. Storage Temperature: -20°--- 70°

12. Working Temperature: -10°--- 60°

Inquire Now
Product Details

RA-DB1340

RA-DB1340

RA-DB1340



MODEL NO.

VOLTAGE

(V)

CURRENT
(A)
POWER
(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAX PRESSURE
(mm-H2O)
NOISE
(dBA)
RA-DB1340L12
24
0.35
0.18
4.20
4.32
150027.0023.0045
RA-DB1340M12
24
0.85
0.42
10.20
10.80
200036.0026.0053
RA-DB1340H12
24
2.00
1.00
24.00
24.00
270048.0052.0058
