DC Axial Fans

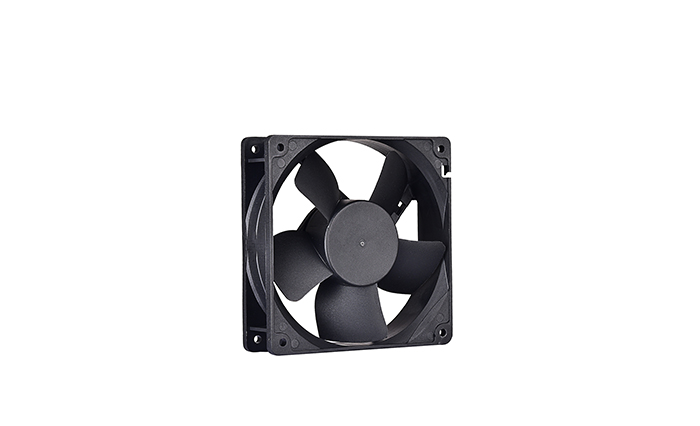

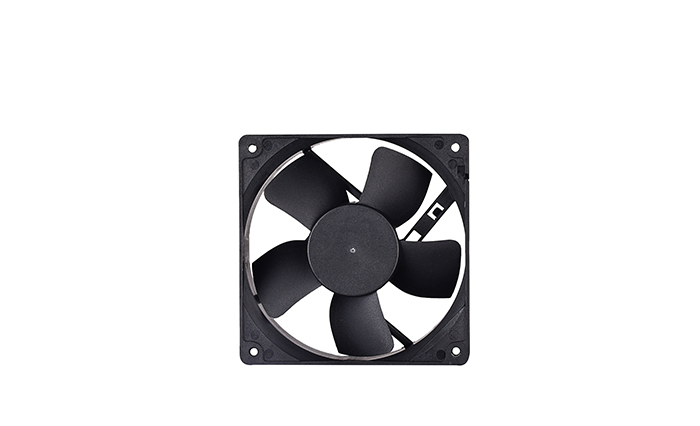

RA-DC12032

DC Axial Fans (120x120x32mm) Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: PBT With Fiber Class Filed Ul-94V0

3. Motor Type: High Performance DC Brushless

4. Connection: Wire & Terminal

                        Red (+) / Black(-) / Blue (PWM)

5. Out Put Signal: FG—Yellow   RD—White

6. Insulation Class: B

7. Compressive Strength: 500v

8. Storage Temperature: -20°---  70°

9. Working Temperature: -10°---  60°

Inquire Now

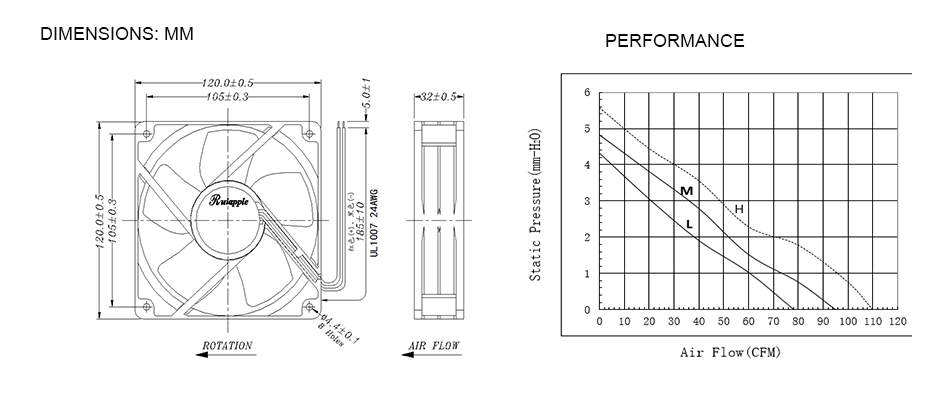

Product Details

RA-DC12032


MODEL NO.VOLTAGE(V)CURRENT
(A)
POWER
(W)
SPEED(RPM)MAX AIR FLOW(CFM)MAX Sq.
(mm-H2O)
NOISE
(DBA)
RA-DC12032L12
24
48
0.22
0.20
0.10

2.6

44.80

4.80

200077.004.2036
RA-DC12032M
12
24
48
0.30
0.20
0.14
3.60
4.80
6.72
250095.004.8040
RA-DC12032H12
24
48
0.42
0.30
0.18
5.04
7.20
8.32
2900110.005.9043


Description:

Ruiapple 12V / 24V / 48V 120x120x32 DC cooling fan is features high performance and waterproof. This standard DC cooling fan has highly reliable ball bearing system that is ideal for telecom and other industry applications.


Related Product:

120x120x25mm Fan120x120x30 FanCooling Fan 120x120x38.

View More Products: DC Axial Fans


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
