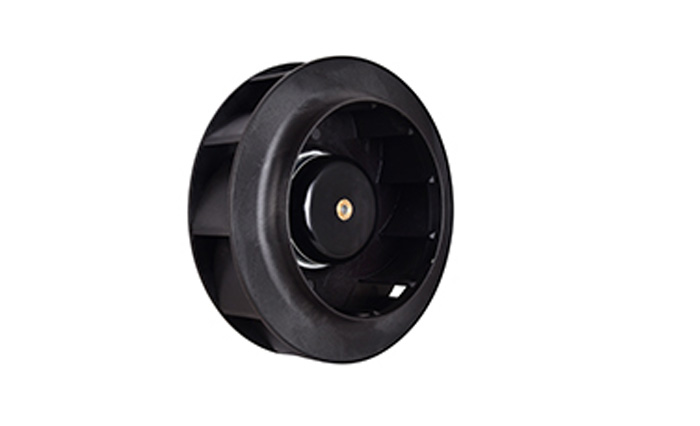

Ruiapple EC centrifugal fans make use of EC motor, which can make energy savings of up to 50% compared to AC centrifugal fans. All there small ec cooling fans are made in China, by Ruiapple.
Click the links below to view product details or just contact us for recommendation!
| Model | Dimensions
D*H(mm) |
Max Air Flow
(Cfm) | Max Sp.
(mm-H2O) | Noise level
(dBA) |
Input voltage
(VAC) | Frequency
(Hz) | Power
(w) |
| RA-ECC133 | Φ133*100 | 93.50---186.10 | 14.30---46.40 | 55.8---71.3 | 85---265 | 50/60 | 15---56 |
| RA-ECC175 | Φ175*96 | 388.00---262.00 | 19.40---44.50 | 58.1---69.7 | 85---265 | 50/60 | 23.00---70.00 |
| RA-ECC190 | Φ190*96 | 285.00---408.00 | 24.80--52.60 | 63.30---72.20 | 85---265 | 50/60 | 26.00---70.00 |
| RA-ECC220 | Φ220*72 | 350.00---465.00 | 23.10---38.60 | 63.20---71.20 | 85---265 | 50/60 | 34.00---70.00 |
| RA-ECC225 | Φ225*125 | 537.00----595.00 | 29.40----39.80 | 66.00---70.00 | 180---240 | 50/60 | 47----68 |
| RA-ECC250 | Φ250*110 | 393.00---461.00 | 24.20---36.10 | 67.10---70.40 | 85---265 | 50/60 | 40.00---67.00 |
