EC Axial Fans

RA-EC6025

EC Axial Fans (60x60x25mm) Features:

1. Bearing System: Ball Bearing & Sleeve Bearing

2. Impeller: PBT With Fiber Class Filed Ul-94V0

3. Motor Type: ESM

4. Connection: Wire & Terminal

                        Red (+) / Black(-) / Blue (PWM)

5. Out Put Signal: FG—Yellow   RD—White

6. Insulation Class: B

7. Compressive Strength: 500v

8. Storage Temperature: -20°---  70°

9. Working Temperature: -10°---  60°

Inquire Now
Product Details

RA-DC6025

RA-DC6025RA-DC6025



MODEL NO.

VOLTAGE

(V)

CURRENT
(A)
POWER
(W)

SPEED

(RPM)

MAX AIR FLOW

(CFM)

MAX Sq.
(mm-H2O)
NOISE
(DBA)
RA-EC6025110-240
0.032.00
300038.002.8326


Description:

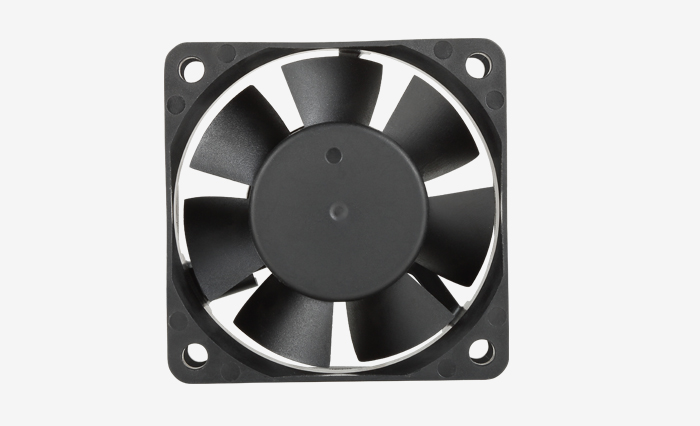

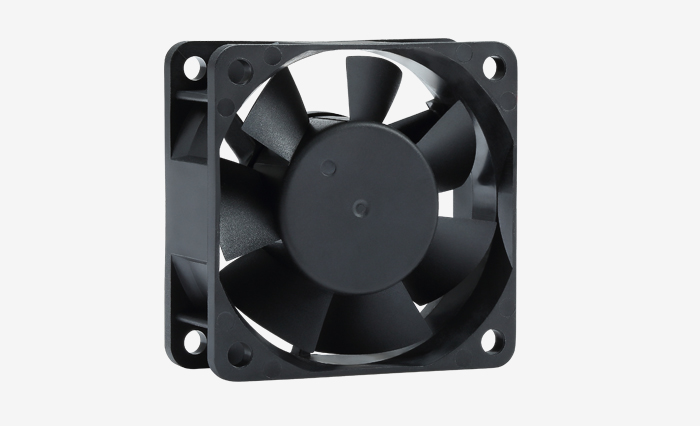

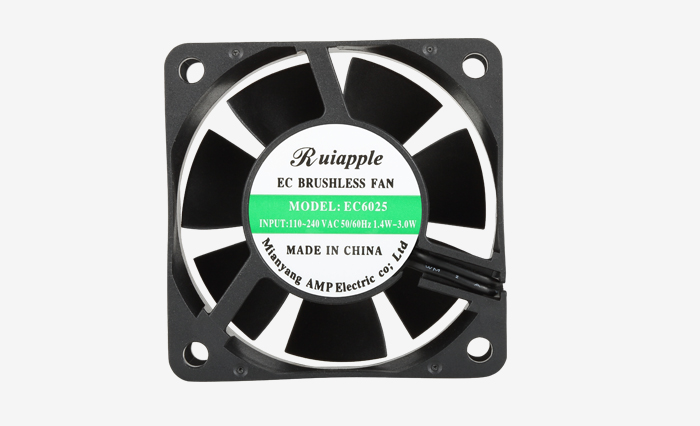

This 60mm ec axial fan provides better cooling efficiency for computer and hard disc. In addition, long-life bearing makes fan's life get longer it could efficiently extend fan's life, and reduce fan replacement frequency.


Related Product: 60x60x20 fanfan 60x60x15.

View More Products: EC Axial Fans.


1.Other voltage also is realizable  2.Specifications subject to change without notice;  3.Design and provide products according to client’s requirement
