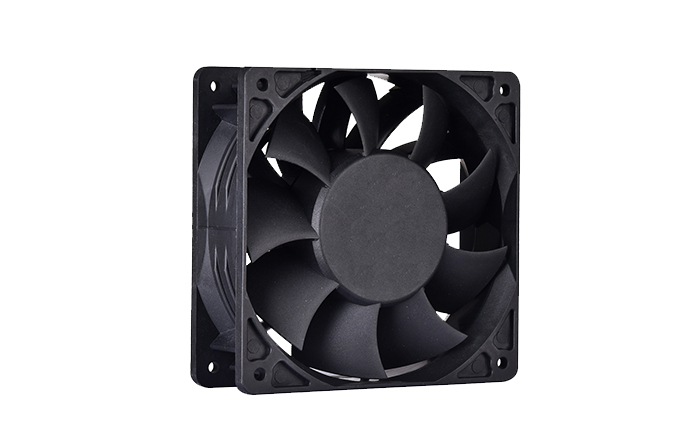

EC axial cooling fan applied high efficient brushless DC motors and its power consumption reduced almost 80% compared with conventional AC axial fans. As a reputed cooling fans manufacturer in China, Ruiapple will be your reliable partner.
Click the links below to view product details or just contact us for recommendation!
| Model | Dimensions
L*H*W (mm) | Max Air Flow
(Cfm) | Max Sp.
(mm-H2O) | Noise level
(dBA) |
Input voltage
(VAC) | Frequency
(Hz) | Power
(w) |
| RA-EC6025 | 60x60x25mm | 38.00 | 2.83 | 26 | 110-240 | 50/60 | 2.00 |
| RA-EC8025 | 80x80x25mm | 38.00 | 2.83 | 34.60 | 110-240 | 50/60 | 2.00 |
| RA-EC9225 | 92x92x25mm | 51.80 | 3.5 | 37 | 110-240 | 50/60 | 3.00 |
| RA-EC12038 | 120x120x38mm | 104.00 | 7.70 | 47 | 110-240 | 50/60 | 5.00 |
| RA-EC12038A | 120x20x38mm | 148 | 8.93 | 56 | 110-240 | 50/60 | 14.0 |
| RA-EC17251A | 172x150x51mm | 260 | 18.9 | 60.8 | 110-240 | 50/60 | 21 |
