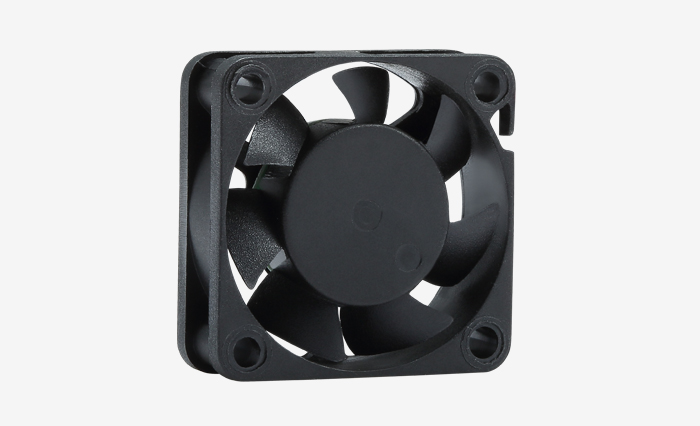

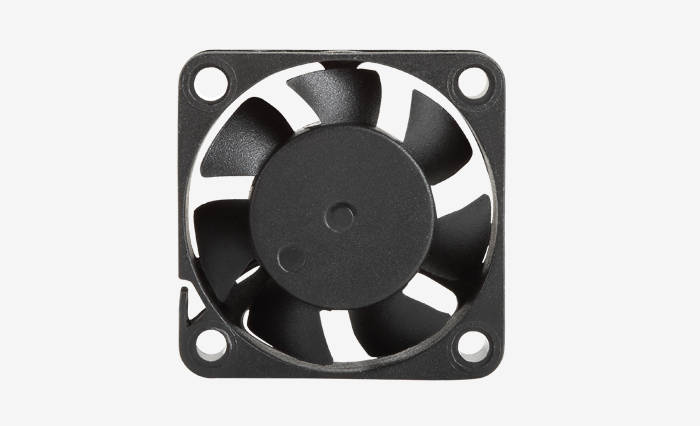

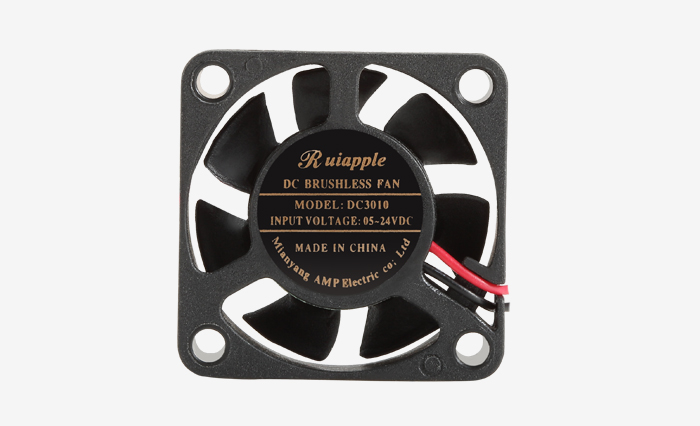

DC Axial Fans (30x30x10mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High-Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
| MODEL NO. | VOLTAGE(VDC) | CURRENT(A) | POWER(W) | SPEED(RPM) | MAX AIR FLOW(CFM) | MAX Sq.(mm-H2O) | NOISE(DBA) |
| RA-DC3010 L | 05 12 24 | 0.14 0.08 0.04 | 0.70 0.96 0.96 | 8000 | 2.80 | 3.59 | 27.5 |
| RA-DC3010 M | 05 12 24 | 0.18 0.12 0.08 | 0.90 1.44 1.92 | 10000 | 4.0 | 5.36 | 33.2 |
| RA-DC3010 H | 05 12 24 | 0.24 0.11 0.07 | 1.20 1.32 1.68 | 12000 | 4.80 | 7.25 | 38.2 |
Description:
This miniature high speed 30mm 5V, 24V or 12V DC fan cooling fan RA-DC3010 are excellent for cooling electronics, hotends, and prints. Super silent, and great heat dissipation. Size: 30x30x10 mm. Contact us to view more DC cooling fans.
Related Product: DC Brushless Fan 40x40x10mm.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client's requirement.
