DC Axial Fans (25x25x10mm) Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94V0
3. Motor Type: High Performance DC Brushless
4. Connection: Wire & Terminal
Red (+) / Black(-) / Blue (PWM)
5. Out Put Signal: FG—Yellow RD—White
6. Insulation Class: B
7. Compressive Strength: 500v
8. Storage Temperature: -20°--- 70°
9. Working Temperature: -10°--- 60°
Specification:
MODEL NO. | VOLTAGE (VDC) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. (mm-H2O) | NOISE (DBA) |
RA-DC2510 L | 05 12 24 | 0.10 0.06 0.04 | 0.50 0.72 0.96 | 8000 | 1.10 | 2.87 | 22.4 |
RA-DC2510 M | 05 12 24 | 0.12 0.06 0.04 | 0.60 0.72 0.96 | 10000 | 1.40 | 4.41 | 25.3 |
RA-DC2510 H | 05 12 24 | 0.14 0.09 0.05 | 0.70 1.08 1.20 | 13000 | 2.30 | 8.53 | 32.1 |
Description:

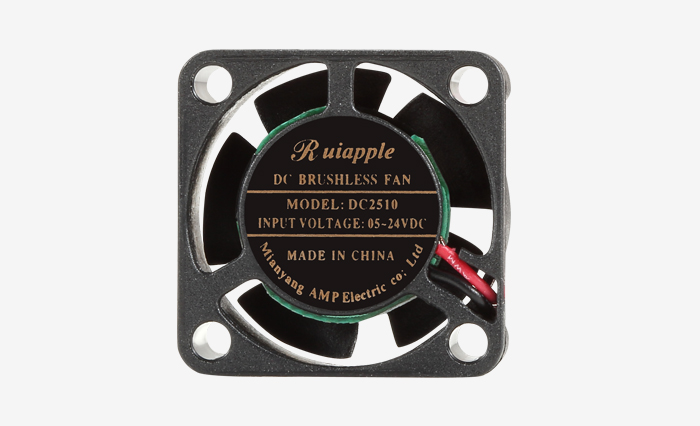

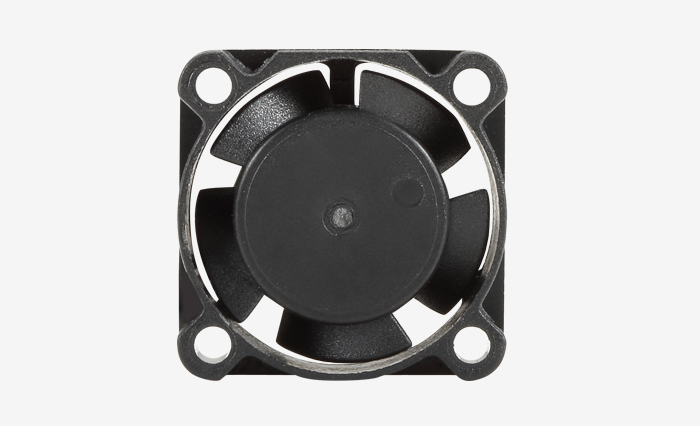

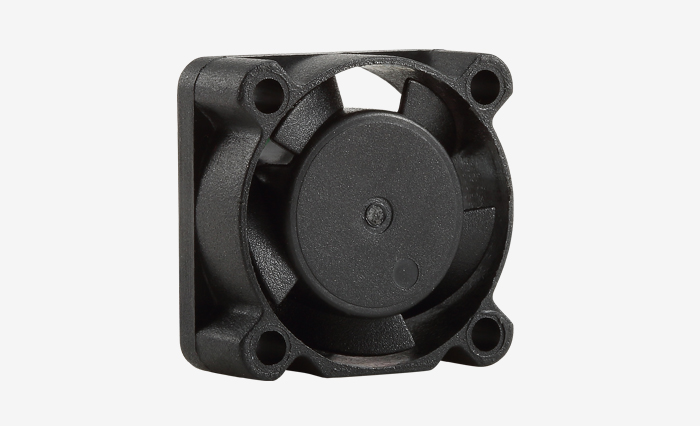

This tiny 25x25x10 mm DC brushless cooling fan is one of the most popular dc cooling fans for OEM, industrial and commercial applications. Available in a variety of voltage 24V, 12V, 5V. From Ruiapple, a Chinese dc cooling fan manufacturer.
Related Product: 30mm High Speed Cooling Fan.
View More Products: DC Axial Fans.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement.
