AC Axial Fan Features:
1. Bearing System: Ball Bearing & Sleeve Bearing
2. Impeller: PBT With Fiber Class Filed Ul-94v0
3. Housing: Die Casting Aluminum & Surface Black Paint
4. Motor Type: AC Brushless
5. Insulation Class: E
6. Compressive Strength: 1500v
7. Storage Temperature: -20° - 70°
8. Working Temperature: -10° - 60°
| MODEL NO. | VOLTAGE (V) | FREUENCY (HZ) | CURRENT (A) | POWER (W) | SPEED (RPM) | MAX AIR FLOW (CFM) | MAX Sq. （mm-H2O) | NOISE （DBA） |
| RA-AC9225L22 | 220/240 | 50/60 | 0.05/0.04 | 8/6 | 1700/1900 | 21/22 | 2.54/2.27 | 22/24 |
| RA-AC9225L11 | 110/120 | 50/60 | 0.06/0.05 | 8/6 | 1700/1900 | 21/22 | 2.54/2.27 | 22/24 |
| RA-AC9225M22 | 220/240 | 50/60 | 0.05/0.05 | 12/10 | 2100/2400 | 25/28 | 3.30/3.56 | 28/30 |
| RA-AC9225M11 | 110//120 | 50/60 | 0.07/0.06 | 12/10 | 2100/2400 | 25/28 | 3.30/3.56 | 28/30 |
| RA-AC9225H22 | 220/110 | 50/60 | 0.10/0.09 | 19/17 | 2400/2800 | 30/36 | 4.06/5.08 | 35/37 |
| RA-AC9225H11 | 110/120 | 50/60 | 0.21/0.20 | 19/17 | 2400/2800 | 30/30 | 4.06/5.08 | 35/37 |
Description:

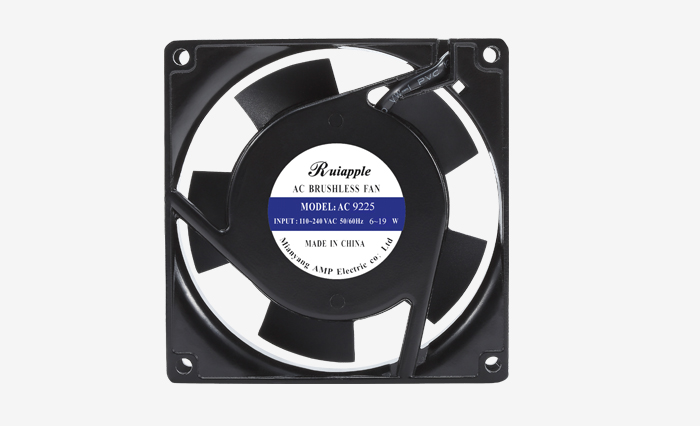

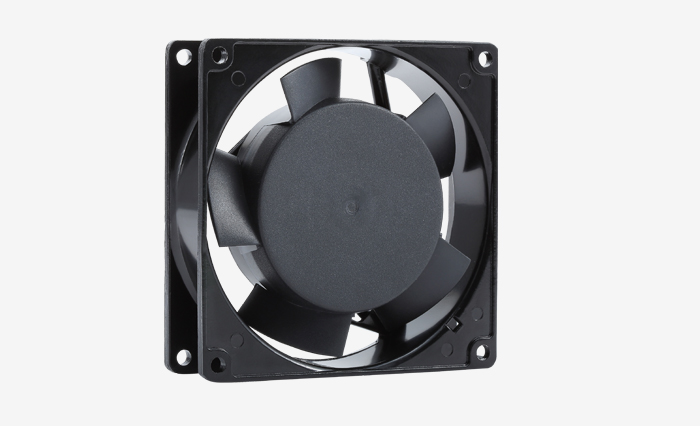

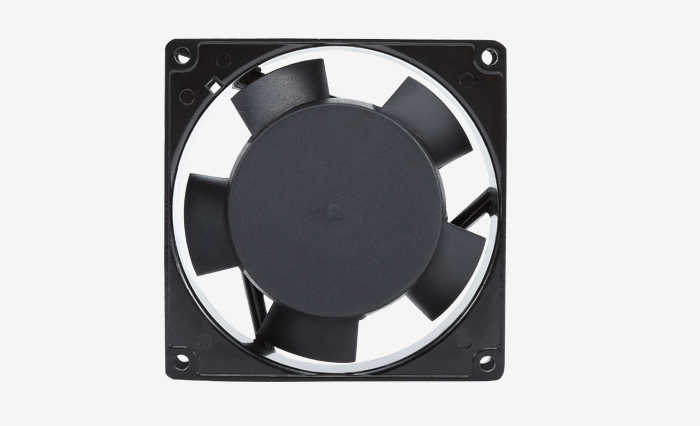

The high speed 92x92x25 mm 110V AC axial cooling fan is housed in die cast aluminum with thermoplastic blades. This fan can be supplied by 115V, 120V, 220V, 230V, 240V voltage. High speed fans deliver more air but are louder than low speed fans of the same size. They are more suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. This model can be found in various noise tolerant applications such as casino machines, chicken coops, industrial machinery, arcade systems, and more. A low speed version is also available for quieter applications.
1.Other voltage also is realizable 2.Specifications subject to change without notice; 3.Design and provide products according to client’s requirement
