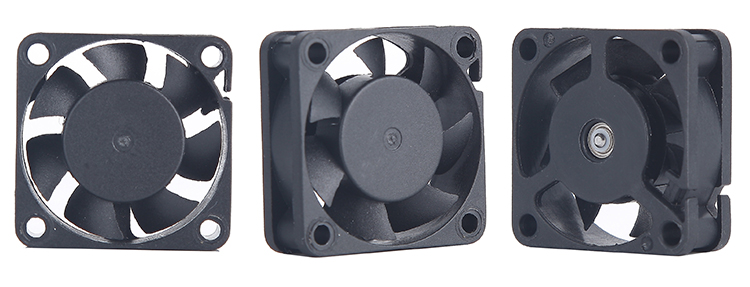

High Pressure 12V DC Axial Fan RA-DC3010H

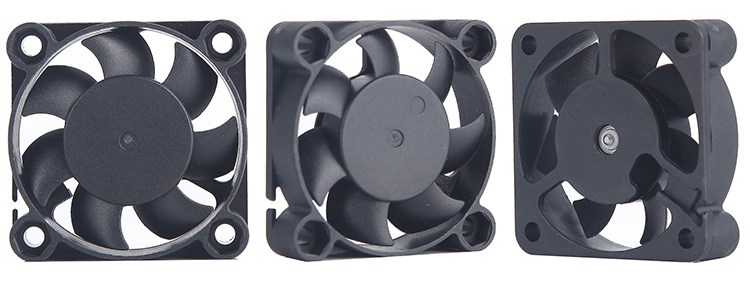

Medium Pressure 12V DC Axial Fan RA-DC4010M

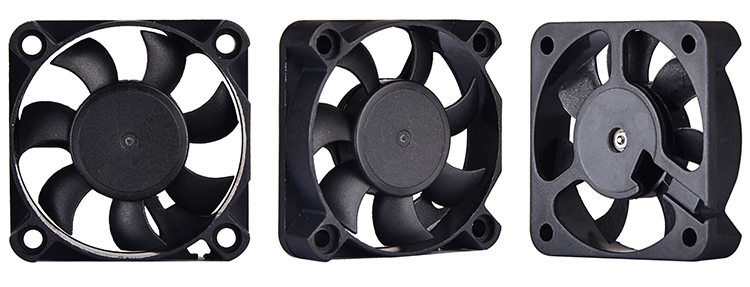

Low Pressure 12V DC Axial Fan RA-DC5010L

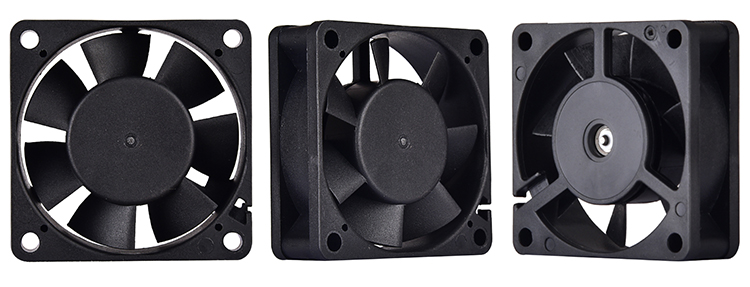

High Pressure 12V DC Axial Fan RA-DC6020H

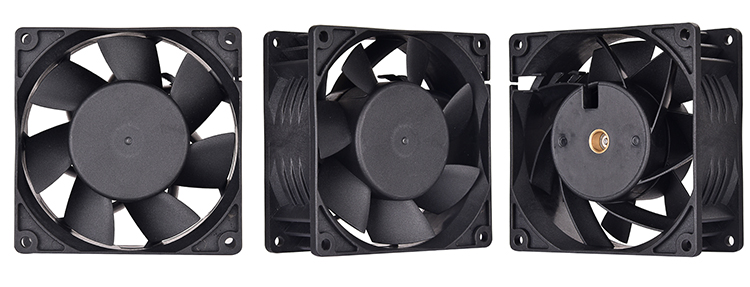

Ultra High Pressure 12V DC Axial Fan RA-DC9238U
12V DC Axial Fan Specification
| MODEL NO. | Size | Voltage | Speed | Air Flow | Static Pressure | NOISE |
| (mm) | (VDC) | (RPM) | FLOW (CFM) | (mm-H2O) | (DBA) | |
| RA-DC3010H | 30x30x10 | 12V | 10000 | 5.1 | 5.5 | 32 |
| RA-DC4010M | 40x40x10 | 12V | 6500 | 7.8 | 3.9 | 24 |
| RA-DC5010L | 50x50x10 | 12V | 3500 | 8.4 | 1.8 | 20 |
| RA-DC6020H | 60x60x20 | 12V | 5000 | 25.7 | 6.1 | 34 |
| RA-DC7010M | 70x70x10 | 12V | 2500 | 16 | 1.6 | 23 |
| RA-DC9238U | 92x92x38 | 12V | 8000 | 158.5 | 43 | 65 |
